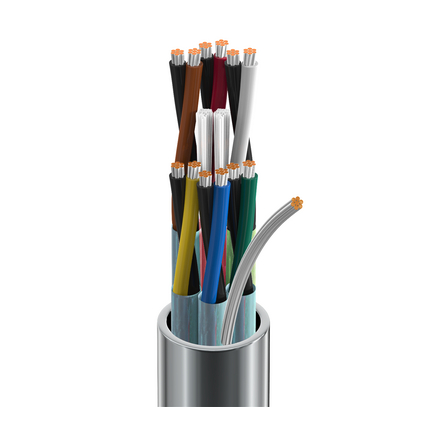

Belden 9874 060100 Audio, Control & Instrument, #20-6pr, PO, Indiv. Foil, PVC Jkt, CM
Audio, Control & Instrument Cable, 20 AWG stranded (7x28) tinned copper conductors, polypropylene insulation, 6 twisted pairs, individually shielded with Beldfoil® (100% coverage), 22 AWG stranded tinned copper drain wire, overall PVC jacket.
Ordering Details
- Manufacturer Part Number: 9874 060100
- Color: Chrome
- UPC/EAN: 612825259800
- Manufacturer Footnote: C
Product Overview
- Suitable Applications: Low Voltage Analog Signals (4-20ma, 0-10v, ...); Low Voltage Digital Control (24v, …); Line Level Audio; Computer Communication; Panel Wiring
Construction Details
- Element: Pair(s); No. of Elements: 6; Size: 20 AWG; Stranding: 7x28; Material: TC - Tinned Copper
- Element: Pair(s); Material: PP - Polypropylene; Nom. Thickness: 0.015 in (0.38 mm); Nom. Insulation Diameter: 0.066 in (1.7 mm); Color Code: Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown
- Element: Pair(s); Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 22 AWG (19x34) TC; Notes: each pair
- Separator: Polyester Tape; Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.035 in (0.89 mm); Nom. Diameter: 0.445 in (11.3 mm)
- Overall Cable Diameter (Nominal): 0.445 in (11.3 mm)
Electrical Characteristics
- Element: Pair(s); Nom. Conductor DCR: 11.3 Ohm/1000ft; Nom. Inner Shield DCR: 11.7 Ohm/1000ft (38.4 Ohm/km); Nom. Capacitance Cond-to-Cond: 30 pF/ft (98 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 55 pF/ft (180 pF/m); Nom. Characteristic Impedence: 50 Ohm; Nom. Delay: 1.4 ns/ft; Nom. Inductance: 0.18 µH/ft (0.59 µH/m); Nom. Velocity of Prop.: 66%; Max. Current: 2.7 Amps per Conductor at 25ºC
- UL Voltage Rating: 300 V (CM), 30 V (AWM 2919)
Mechanical Characteristics
- UL Temperature: 80°C; Operating: -20°C to +80°C
- Stationary Min.: 4.5 in (110 mm); Installation Min.: 4.5 in (110 mm)
- Max. Pull Tension: 208 lbs (94.3 kg)
- Bulk Cable Weight: 102 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor
- Flammability / Reaction to Fire: UL 1685 FT4 Loading, IEC 60332-1-2
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: Article 800, CM
- AWM Compliance: AWM 2919
- CEC / C(UL) Compliance: CM
- European Directive Compliance: EU CE Mark
- UK Regulation Compliance: UKCA Mark
History
- Update and Revision: Revision Number: 0.555 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
