Description
Belden 9873MN 006100 SpaceMaker™, 3 Pr #20 Str TC, PO Ins, IS/OS, PVC Jkt, AWM 2937
SpaceMaker™, 3 Pair 20AWG (26x34) Tinned Copper, PO Insulation, Individual & Overall Beldfoil® Shield, PVC Outer Jacket, AWM 2937
Ordering Details
- Manufacturer Part Number: 9873MN 006100
- Color: Blue, Light
- Length: 100 ft
- Put-Up: Reel
- UPC/EAN: 612825387664
Supplied as one 100 ft Reel.

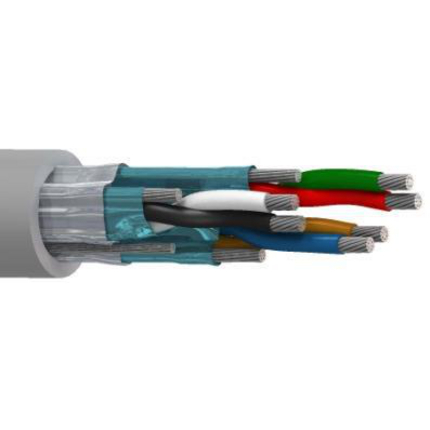

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Construction Details
- Element: Pair(s); No. of Elements: 3; Size: 20 AWG; Stranding: 26x34; Material: TC - Tinned Copper
- Element: Pair(s); Material: PP - Polypropylene; Nom. Thickness: 0.010 in (0.25 mm); Nom. Insulation Diameter: 0.057 in (1.4 mm); Color Code: Black & White, Red & Green, Brown & Blue
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 22 AWG (19x34) TC
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 20 AWG (19x32) TC
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.016 in (0.41 mm); Nom. Diameter: 0.271 in
- Overall Cable Diameter (Nominal): 0.271 in
Electrical Characteristics
- Nom. Conductor DCR: 11.2 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 32.6 pF/ft (107 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 61.3 pF/ft (201 pF/m); Nom. Inductance: 0.026 µH/ft (0.085 µH/m); Max. Current: 5.6 Amps per Conductor at 30ºC
- UL Voltage Rating: 300 V
Mechanical Characteristics
- UL Temperature: 80°C; Operating: -20°C to +80°C
- Stationary Min.: 1.084 in (27.53 mm); Installation Min.: 1.084 in
- Max. Pull Tension: 102.5 lbs (46.49 kg)
- Bulk Cable Weight: 45 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor
- Flammability / Reaction to Fire: FT2
- AWM Compliance: AWM 2937
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
History
- Update and Revision: Revision Number: 0.210 Revision Date: 09-07-2025
