Belden 9843 0605000 RS485, 3 Pr #24 Str TC, PE Ins, OS+TC Brd, PVC Jkt, CM - Chrome, 5,000 ft Reel

$30,558.99
SKU:
9843 0605000
Shipping:
Calculated at Checkout
Color:
Chrome
Length:
5,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
9843
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 9843 0605000 RS485, 3 Pr #24 Str TC, PE Ins, OS+TC Brd, PVC Jkt, CM

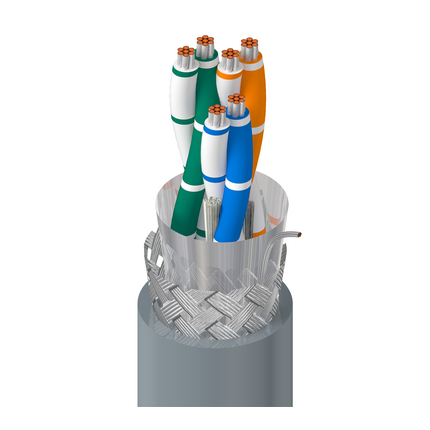

RS-485, 3 Pair 24AWG (7x32) Tinned Copper, PE Insulation, Overall Beldfoil®+Tinned Copper Braid(90%) Shield, PVC Outer Jacket, CM

Ordering Details

  • Manufacturer Part Number: 9843 0605000
  • Color: Chrome
  • Length: 5,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825259619
  • Manufacturer Footnote: C

Supplied as one 5,000 ft Reel.

Product Overview

  • Suitable Applications: RS-485, POS; Computer communications; Low Voltage Analog Signals (4-20ma, 0-10v, ...); Low Voltage Digital Control (24v, …); Line Level Audio; Panel Wiring; serial communication (RS-485 standard) comprising of PLCs, VFDs, HMIs, motors, RTU, SCADA, etc. within noisy environments over long distance, etc.

Construction Details

  • Element: Pair(s); No. of Elements: 3; Size: 24 AWG; Stranding: 7x32; Material: TC - Tinned Copper
  • Element: Pair(s); Material: PE - Polyethylene; Nom. Thickness: 0.022 in (0.56 mm); Nom. Insulation Diameter: 0.068 in (1.7 mm); Color Code: White/Blue Stripe & Blue/White Stripe, White/Orange Stripe & Orange/White Stripe, White/Green Stripe & Green/White Stripe
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 24 AWG (7x32) TC
  • Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 90%
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.035 in (0.89 mm); Nom. Diameter: 0.360 in (9.14 mm)
  • Overall Cable Diameter (Nominal): 0.360 in (9.14 mm)

Electrical Characteristics

  • Element: Pair(s); Nom. Conductor DCR: 24 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 12.8 pF/ft (42.0 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 23 pF/ft (75 pF/m); Nom. Characteristic Impedence: 120 Ohm; Nom. Delay: 1.6 ns/ft; Nom. Velocity of Prop.: 66%; Max. Current: 1.54 Amps per Conductor at 25ºC
  • Nom Outer Shield DCR: 2.3 Ohm/1000ft (7.5 Ohm/km)
  • Element: Pair(s); Frequency [MHz]: 1; Nom. Insertion Loss (Attenuation): 0.6 dB/100ft
  • UL Voltage Rating: 300 V (CM), 30 V (UL AWM 2919)

Mechanical Characteristics

  • UL Temperature: 80°C; Operating: -30°C to +80°C
  • Stationary Min.: 3.75 in (95.3 mm); Installation Min.: 3.75 in (95.3 mm)
  • Max. Pull Tension: 105.5 lbs (47.85 kg)
  • Bulk Cable Weight: 62 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor
  • Flammability / Reaction to Fire: UL 1685 UL Loading, IEC 60332-1-2
  • CPR Compliance: CPR Euroclass: Eca; CPR UKCA Class: Eca
  • NEC / UL Compliance: Article 800, CM
  • AWM Compliance: AWM 2919
  • CEC / C(UL) Compliance: CM
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.579 Revision Date: 02-20-2026
  • Footnote: C - CRATE REEL PUT-UP.

Resources

Belden 9843 Product Information
