Description
Belden 9836 0601000 RS232/422 Low Cap, #24-12pr, PE, O/A Foil+Braid, PVC Jkt, CM, 100Ω
Computer EIA RS-232/422 Cable, 12-Pair, 24 AWG stranded (7x32) tinned copper conductors, polyethylene insulation, overall Beldfoil® (100% coverage) + tinned copper braid shield (65% coverage), 24 AWG stranded tinned copper drain wire, PVC jacket.
Ordering Details
- Manufacturer Part Number: 9836 0601000
- Color: Chrome
- Length: 1,000 ft
- Put-Up: Reel
- UPC/EAN: 612825259381
- Manufacturer Footnote: C
Supplied as one 1,000 ft Reel.

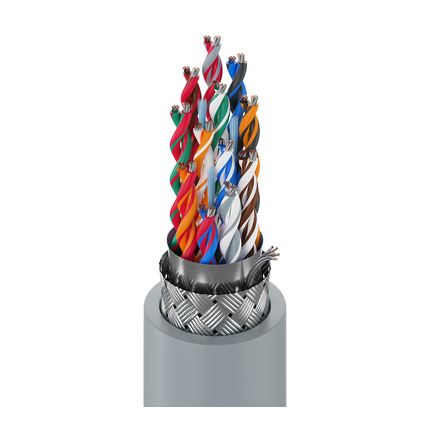

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: RS-232 extended distance applications; RS-422 applications; computer communications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; panel wiring
Construction Details
- Element: Pair(s); No. of Elements: 12; Size: 24 AWG; Stranding: 7x32; Material: TC - Tinned Copper
- Element: Pair(s); Material: PE - Polyethylene; Nom. Thickness: 0.016 in (0.41 mm); Nom. Insulation Diameter: 0.054 in (1.4 mm); Color Code: Western Electric Standard
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 24 AWG (7x32) TC
- Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 65%
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.035 in (0.89 mm); Nom. Diameter: 0.464 in (11.8 mm)
- Overall Cable Diameter (Nominal): 0.464 in (11.8 mm)
Electrical Characteristics
- Element: Pair(s); Nom. Conductor DCR: 28.8 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 15.5 pF/ft (50.9 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 27.5 pF/ft (90.2 pF/m); Nom. Characteristic Impedence: 100 Ohm; Nom. Delay: 1.6 ns/ft; Nom. Velocity of Prop.: 66%; Max. Current: 1.47 Amps per Conductor at 25ºC
- Nom Outer Shield DCR: 3.5 Ohm/1000ft (11 Ohm/km)
- UL Voltage Rating: 300 V (CM), 30 V (AWM 2919)
Mechanical Characteristics
- UL Temperature: 80°C; Operating: -30°C to +80°C
- Stationary Min.: 4.6 in (120 mm); Installation Min.: 4.6 in (120 mm)
- Max. Pull Tension: 187 lbs (84.8 kg)
- Bulk Cable Weight: 100 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor
- Flammability / Reaction to Fire: UL 1685 FT4 Loading
- NEC / UL Compliance: Article 800, CM
- AWM Compliance: AWM 2919
- CEC / C(UL) Compliance: CM
- European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.456 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
