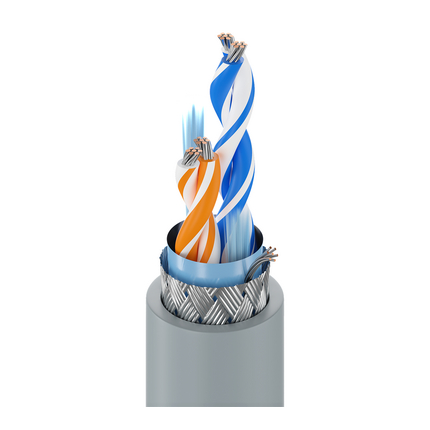

Belden 9829 0605000 RS232/422 Low Cap, #24-2pr, PE, O/A Foil+Braid, PVC Jkt, CM, 100Ω - Chrome, 5,000 ft Reel

$28,731.99
SKU:
9829 0605000
Shipping:
Calculated at Checkout
Color:
Chrome
Length:
5,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
9829
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 9829 0605000 RS232/422 Low Cap, #24-2pr, PE, O/A Foil+Braid, PVC Jkt, CM, 100Ω

Computer EIA RS-232/422 Cable, 2-Pair, 24 AWG stranded (7x32) tinned copper conductors, polyethylene insulation, overall Beldfoil® (100% coverage) + tinned copper braid shield (65% coverage), 24 AWG stranded tinned copper drain wire, PVC jacket.

Ordering Details

  • Manufacturer Part Number: 9829 0605000
  • Color: Chrome
  • Length: 5,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825259237

Supplied as one 5,000 ft Reel.

Product Overview

  • Suitable Applications: RS-232 extended distance applications; RS-422 applications; computer communications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; panel wiring

Construction Details

  • Element: Pair(s); No. of Elements: 2; Size: 24 AWG; Stranding: 7x32; Material: TC - Tinned Copper
  • Element: Pair(s); Material: PE - Polyethylene; Nom. Thickness: 0.011 in (0.28 mm); Nom. Insulation Diameter: 0.054 in (1.4 mm); Color Code: Western Electric Standard
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 24 AWG (7x32) TC
  • Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 65%
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.035 in (0.89 mm); Nom. Diameter: 0.291 in (7.39 mm)
  • Overall Cable Diameter (Nominal): 0.291 in (7.39 mm)

Electrical Characteristics

  • Element: Pair(s); Nom. Conductor DCR: 28.8 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 15.5 pF/ft (50.9 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 27.5 pF/ft (90.2 pF/m); Nom. Characteristic Impedence: 100 Ohm; Nom. Delay: 1.6 ns/ft; Nom. Velocity of Prop.: 66%; Max. Current: 2.1 Amps per Conductor at 25ºC
  • Nom Outer Shield DCR: 4.4 Ohm/1000ft (14 Ohm/km)
  • UL Voltage Rating: 300 V (CM), 30 V (AWM 2919)

Mechanical Characteristics

  • UL Temperature: 80°C; Operating: -30°C to +80°C
  • Stationary Min.: 2.9 in (74 mm); Installation Min.: 2.9 in (74 mm)
  • Max. Pull Tension: 57 lbs (26 kg)
  • Bulk Cable Weight: 40 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor
  • Flammability / Reaction to Fire: UL 1685 FT4 Loading, IEC 60332-1-2
  • CPR Compliance: CPR Euroclass: Eca
  • NEC / UL Compliance: Article 800, CM
  • AWM Compliance: AWM 2919
  • CEC / C(UL) Compliance: CM
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.555 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP.
