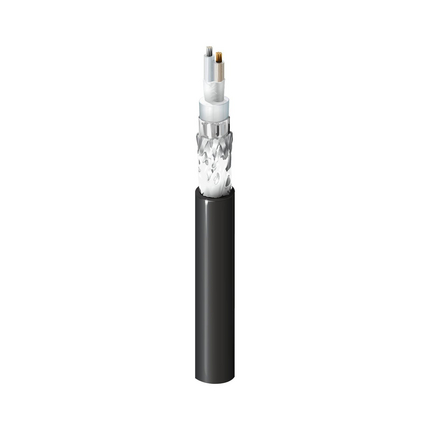

Belden 9815 0101000 100Ω Twinax, #20-1c TC/1c BC, PO, Duofoil® + 2 TC Braids, PE Jkt, Direct Burial
100 Ohm Twinax, 20 AWG stranded (7x28) .037" one tinned/ one bare copper conductors, polyethylene insulation, Duofoil® + tinned copper braid shield (95% coverage), high-density polyethylene jacket.
Ordering Details
- Manufacturer Part Number: 9815 0101000
- Color: Black
- Length: 1,000 ft
- Put-Up: Reel
- UPC/EAN: 612825259039
- Manufacturer Footnote: C
Supplied as one 1,000 ft Reel.
Construction Details
- Size: 20; Stranding: 7x28; Material: TC - Tinned Copper
- Size: 20; Stranding: 7x28; Material: BC - Bare Copper
- Material: PE - Polyethylene; Color Code: Natural & Natural
- Material: PE - Polyethylene; Nom. Diameter: 0.236 in (5.99 mm)
- Layer: 1; Outer Shield Type: Tape; Material: Tri-Laminate (Alum+Poly+Alum); Material Trade Name: Duofoil®; Coverage: 100%
- Layer: 2; Outer Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 95%
- Outer Shield Table Notes: Polyethylene Grease
- Material: PE - Polyethylene; Nom. Diameter: 0.33 in
- Outer Jacket1 Table Notes: HDPE
Electrical Characteristics
- Frequency: 1 MHz; Nom. Attenuation: 0.4 dB/100ft
- Frequency: 10 MHz; Nom. Attenuation: 1.1 dB/100ft
- Frequency: 50 MHz; Nom. Attenuation: 2.5 dB/100ft
- Frequency: 100 MHz; Nom. Attenuation: 4.1 dB/100ft
- Frequency: 200 MHz; Nom. Attenuation: 6.4 dB/100ft
- Frequency: 400 MHz; Nom. Attenuation: 10.2 dB/100ft
- Nom. Conductor DCR: 9.5 Ohm/1000ft (31 Ohm/km); Nom. Outer Shield DCR: 2 Ohm/1000ft (6.6 Ohm/km); Nom. Capacitance Cond-to-Shield: 14.5 pF/ft (47.6 pF/m); Nom. Characteristic Impedance: 100 Ohm; Nom. Velocity of Prop.: 66%
- Voltage Rating: 600 V RMS
- Electrical Characteristics Notes: Capacitance conductor to shield: 23.0 pF/ft
Mechanical Characteristics
- Operating: -55°C To +80°C
- Max. Pull Tension: 115 lbs (52.2 kg)
- Bulk Cable Weight: 62 lbs/1000ft (92 kg/km)
Standards and Compliance
- Environmental Suitability: Burial
- CPR Compliance: CPR Euroclass: Fca
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
Product Notes
- Notes: Polyethylene flooding grease applied over outer shield.
History
- Update and Revision: Revision Number: 0.348 Revision Date: 11-06-2026
- Footnote: C - CRATE REEL PUT-UP.
