Belden 9808 060500 RS232/422 Low Cap, #28-7pr, PP, O/A Foil+Braid, PVC Jkt, CL2, 100Ω - Chrome, 500 ft Reel

$4,091.99
SKU:
9808 060500
Shipping:
Calculated at Checkout
Color:
Chrome
Length:
500 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
9808
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 9808 060500 RS232/422 Low Cap, #28-7pr, PP, O/A Foil+Braid, PVC Jkt, CL2, 100Ω

Computer EIA RS-232/422 Cable, 7-Pair, 28 AWG stranded (7x36) tinned copper conductors, polypropylene insulation, overall Beldfoil® (100% coverage) + tinned copper braid shield (90% coverage), 28 AWG stranded tinned copper drain wire, PVC jacket.

Ordering Details

  • Manufacturer Part Number: 9808 060500
  • Color: Chrome
  • Length: 500 ft
  • Put-Up: Reel
  • UPC/EAN: 612825258896

Supplied as one 500 ft Reel.

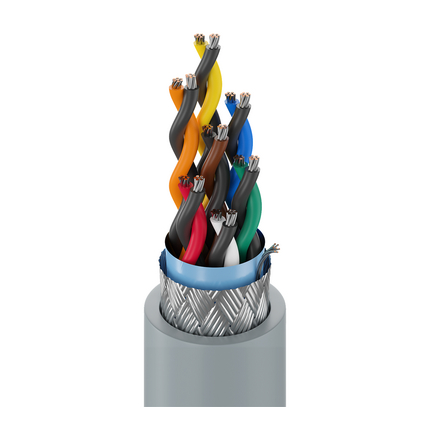

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: RS-232 extended distance applications; RS-422 applications; computer communications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; panel wiring

Construction Details

  • Element: Pair(s); No. of Elements: 7; Size: 28 AWG; Stranding: 7x36; Material: TC - Tinned Copper
  • Element: Pair(s); Material: PP - Polypropylene; Nom. Thickness: 0.009 in (0.23 mm); Nom. Insulation Diameter: 0.033 in (0.84 mm); Color Code: Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown, Black & Orange
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 28 AWG (7x36) TC
  • Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 90%
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.035 in (0.89 mm); Nom. Diameter: 0.256 in (6.50 mm)
  • Overall Cable Diameter (Nominal): 0.256 in (6.50 mm)

Electrical Characteristics

  • Element: Pair(s); Nom. Conductor DCR: 73.5 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 16.5 pF/ft (54.1 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 27.5 pF/ft (90.2 pF/m); Nom. Characteristic Impedence: 100 Ohm; Nom. Delay: 1.4 ns/ft; Nom. Inductance: 0.19 µH/ft (0.62 µH/m); Nom. Velocity of Prop.: 66%; Max. Current: 0.9 Amps per Conductor at 25ºC
  • Nom Outer Shield DCR: 5 Ohm/1000ft (16 Ohm/km)
  • UL Voltage Rating: 30 V

Mechanical Characteristics

  • UL Temperature: 60°C; Operating: -30°C to +60°C
  • Stationary Min.: 2.6 in (66 mm); Installation Min.: 2.6 in (66 mm)
  • Max. Pull Tension: 71 lbs (32 kg)
  • Bulk Cable Weight: 41 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor
  • Flammability / Reaction to Fire: UL 1685 FT4 Loading
  • CPR Compliance: CPR Euroclass: Eca
  • NEC / UL Compliance: Article 725, CL2
  • AWM Compliance: AWM 2960
  • European Directive Compliance: EU CE Mark, EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.495 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP.

Resources

Belden 9808 Product Information
