Belden 9777 0601000 Audio, Control & Instrument, #18-15pr, PO, Indiv. Foil, PVC Jkt, CM - Chrome, 1,000 ft Reel

$43,101.99
SKU:
9777 0601000
Shipping:
Calculated at Checkout
Color:
Chrome
Length:
1,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
9777
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 9777 0601000 Audio, Control & Instrument, #18-15pr, PO, Indiv. Foil, PVC Jkt, CM

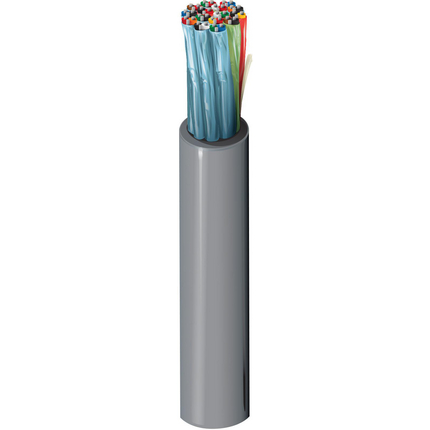

Audio, Control & Instrument Cable, 18 AWG stranded (19x30) tinned copper conductors, polypropylene insulation, 15 twisted pairs, individually shielded with Beldfoil® (100% coverage), 20 AWG stranded tinned copper drain wire, PVC jacket.

Ordering Details

  • Manufacturer Part Number: 9777 0601000
  • Color: Chrome
  • Length: 1,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825258612
  • Manufacturer Footnote: C

Supplied as one 1,000 ft Reel.

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: Low Voltage Analog Signals (4-20ma, 0-10v, ...); Low Voltage Digital Control (24v, …); Line Level Audio; Computer Communication; Panel Wiring

Construction Details

  • Element: Pair(s); No. of Elements: 15; Size: 18 AWG; Stranding: 19x30; Material: TC - Tinned Copper
  • Element: Pair(s); Material: PP - Polypropylene; Nom. Thickness: 0.019 in (0.48 mm); Nom. Insulation Diameter: 0.082 in (2.1 mm); Color Code: Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown, Black & Orange, Red & White, Red & Green, Red & Blue, Red & Yellow, Red & Brown, Red & Orange, Green & White, Green & Blue
  • Element: Pair(s); Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 20 AWG (7x28) TC; Notes: each pair
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.052 in (1.3 mm); Nom. Diameter: 0.819 in (20.8 mm)
  • Overall Cable Diameter (Nominal): 0.819 in (20.8 mm)

Electrical Characteristics

  • Element: Pair(s); Nom. Conductor DCR: 7.2 Ohm/1000ft; Nom. Inner Shield DCR: 8.3 Ohm/1000ft (27 Ohm/km); Nom. Capacitance Cond-to-Cond: 30 pF/ft (98 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 55 pF/ft (180 pF/m); Nom. Characteristic Impedence: 50 Ohm; Nom. Delay: 1.4 ns/ft; Nom. Inductance: 0.18 µH/ft (0.59 µH/m); Nom. Velocity of Prop.: 66%; Max. Current: 2.7 Amps per Conductor at 25ºC
  • UL Voltage Rating: 300 V (CM), 30 V (AWM 2929)

Mechanical Characteristics

  • UL Temperature: 80°C; Operating: -20°C to +80°C
  • Stationary Min.: 8.2 in (210 mm); Installation Min.: 8.2 in (210 mm)
  • Max. Pull Tension: 930 lbs (420 kg)
  • Bulk Cable Weight: 350 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor
  • Flammability / Reaction to Fire: UL 1685 FT4 Loading
  • NEC / UL Compliance: Article 800, CM
  • AWM Compliance: AWM 2919
  • CEC / C(UL) Compliance: CM
  • European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.472 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP.
