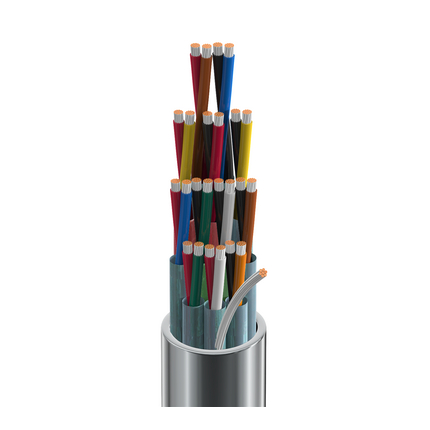

Belden 9776 060100 Audio, Control & Instrument, #18-12pr, PO, Indiv. Foil, PVC Jkt, CM - illustration only; refer to description for cable color and put-up

Belden 9776 060100 Audio, Control & Instrument, #18-12pr, PO, Indiv. Foil, PVC Jkt, CM - Chrome, 100 ft Reel

$4,541.99
SKU:
9776 060100
Shipping:
Calculated at Checkout
Color:
Chrome
Length:
100 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
9776
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 9776 060100 Audio, Control & Instrument, #18-12pr, PO, Indiv. Foil, PVC Jkt, CM

Audio, Control & Instrument Cable, 18 AWG stranded (19x30) tinned copper conductors, polypropylene insulation, 12 twisted pairs, individually shielded with Beldfoil® (100% coverage), 20 AWG stranded tinned copper drain wire, PVC jacket.

Ordering Details

  • Manufacturer Part Number: 9776 060100
  • Color: Chrome
  • Length: 100 ft
  • Put-Up: Reel
  • UPC/EAN: 612825258582
  • Manufacturer Footnote: C

Supplied as one 100 ft Reel.

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: Low Voltage Analog Signals (4-20ma, 0-10v, ...); Low Voltage Digital Control (24v, …); Line Level Audio; Computer Communication; Panel Wiring

Construction Details

  • Element: Pair(s); No. of Elements: 12; Size: 18 AWG; Stranding: 19x30; Material: TC - Tinned Copper
  • Element: Pair(s); Material: PP - Polypropylene; Nom. Thickness: 0.019 in (0.48 mm); Color Code: Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown, Black & Orange, Red & White, Red & Green, Red & Blue, Red & Yellow, Red & Brown
  • Element: Pair(s); Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 20 AWG (7x28) TC; Notes: each pair
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.052 in (1.3 mm); Nom. Diameter: 0.735 in (18.7 mm)
  • Overall Cable Diameter (Nominal): 0.735 in (18.7 mm)

Electrical Characteristics

  • Element: Pair(s); Nom. Conductor DCR: 6.4 Ohm/1000ft (21 Ohm/km); Nom. Capacitance Cond-to-Cond: 30 pF/ft (98 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 55 pF/ft (180 pF/m); Nom. Characteristic Impedence: 50 Ohm; Nom. Inductance: 0.18 µH/ft (0.59 µH/m); Nom. Velocity of Prop.: 66%; Max. Current: 2.7 Amps per Conductor at 25ºC
  • UL Voltage Rating: 300 V (CM), 30 V (UL AWM 2929)

Mechanical Characteristics

  • UL Temperature: 80°C (UL AWM 2919); Operating: -20°C to +80°C
  • Stationary Min.: 7.4 in (190 mm); Installation Min.: 7.4 in (190 mm)
  • Max. Pull Tension: 744 lbs (337 kg)
  • Bulk Cable Weight: 275 lbs/1000ft (409 kg/km)

Standards and Compliance

  • Environmental Suitability: Indoor
  • Flammability / Reaction to Fire: UL1685 UL Loading
  • NEC / UL Compliance: Article 800, CM
  • AWM Compliance: AWM 2919
  • CEC / C(UL) Compliance: CM
  • European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.432 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP.
