Belden 9774MN 006100 SpaceMaker™, 6 Pr #18 Str TC, PO Ins, IS/OS, PVC Jkt, AWM 2937 - Blue, Light, 100 ft Reel

$1,230.99
SKU:
9774MN 006100
Shipping:
Calculated at Checkout
Color:
Blue, Light
Length:
100 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
9774MN
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 9774MN 006100 SpaceMaker™, 6 Pr #18 Str TC, PO Ins, IS/OS, PVC Jkt, AWM 2937

SpaceMaker™, 6 Pair 18AWG (41x34) Tinned Copper, PO Insulation, Individual & Overall Beldfoil® Shield, PVC Outer Jacket, AWM 2937

Ordering Details

  • Manufacturer Part Number: 9774MN 006100
  • Color: Blue, Light
  • Length: 100 ft
  • Put-Up: Reel
  • UPC/EAN: 612825385738

Supplied as one 100 ft Reel.

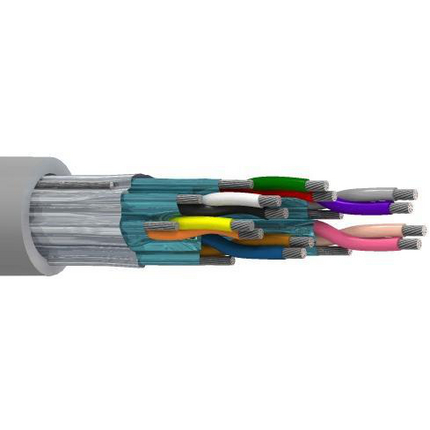

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Construction Details

  • Element: Pair(s); No. of Elements: 6; Size: 18 AWG; Stranding: 41x34; Material: TC - Tinned Copper
  • Element: Pair(s); Material: PP - Polypropylene; Nom. Thickness: 0.010 in (0.25 mm); Nom. Insulation Diameter: 0.067 in (1.7 mm); Color Code: Black & White, Red & Green, Brown & Blue, Orange & Yellow, Purple & Gray, Pink & Tan
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 20 AWG (19x32) TC
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 18 AWG (19x30) TC
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.016 in (0.41 mm); Nom. Diameter: 0.439 in; Ripcord: Yes
  • Overall Cable Diameter (Nominal): 0.439 in

Electrical Characteristics

  • Nom. Conductor DCR: 7.06 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 43.4 pF/ft (142 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 81.6 pF/ft (268 pF/m); Nom. Characteristic Impedence: 39 Ohm; Nom. Inductance: 0.022 µH/ft (0.072 µH/m); Max. Current: 9.8 Amps per Conductor at 30ºC
  • UL Voltage Rating: 300 V

Mechanical Characteristics

  • UL Temperature: 80°C; Operating: -20°C to +80°C
  • Stationary Min.: 1.75 in (44.5 mm); Installation Min.: 1.75 in
  • Max. Pull Tension: 285.7 lbs (129.6 kg)
  • Bulk Cable Weight: 129 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor
  • Flammability / Reaction to Fire: FT2
  • CPR Compliance: CPR Euroclass: Eca
  • AWM Compliance: AWM 2937
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark

History

  • Update and Revision: Revision Number: 0.308 Revision Date: 09-07-2025
