Belden 9773MN 008100 SpaceMaker™, 3 Pr #18 Str TC, PO Ins, IS/OS, PVC Jkt, AWM 2937 - Gray, 100 ft Reel

$452.99
SKU:
9773MN 008100
Shipping:
Calculated at Checkout
Color:
Gray
Length:
100 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
9773MN
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 9773MN 008100 SpaceMaker™, 3 Pr #18 Str TC, PO Ins, IS/OS, PVC Jkt, AWM 2937

SpaceMaker™, 3 Pair 18AWG (41x34) Tinned Copper, PO Insulation, Individual & Overall Beldfoil® Shield, PVC Outer Jacket, AWM 2937

Ordering Details

  • Manufacturer Part Number: 9773MN 008100
  • Color: Gray
  • Length: 100 ft
  • Put-Up: Reel
  • UPC/EAN: 612825386827

Supplied as one 100 ft Reel.

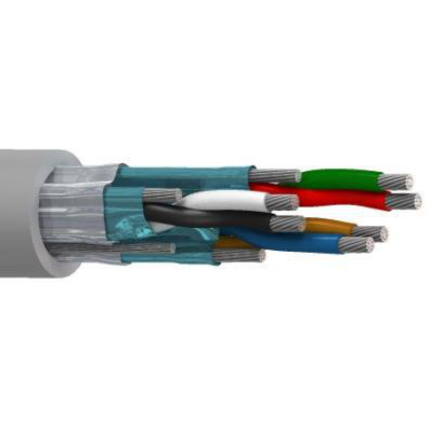

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Construction Details

  • Element: Pair(s); No. of Elements: 3; Size: 18 AWG; Stranding: 41x34; Material: TC - Tinned Copper
  • Element: Pair(s); Material: PP - Polypropylene; Nom. Thickness: 0.010 in (0.25 mm); Nom. Insulation Diameter: 0.067 in (1.7 mm); Color Code: Black & White, Red & Green, Brown & Blue
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 20 AWG (19x32) TC
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 18 AWG (19x30) TC
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.016 in (0.41 mm); Nom. Diameter: 0.310 in
  • Overall Cable Diameter (Nominal): 0.310 in

Electrical Characteristics

  • Nom. Conductor DCR: 7.06 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 43.4 pF/ft (142 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 81.6 pF/ft (268 pF/m); Nom. Characteristic Impedence: 39 Ohm; Nom. Inductance: 0.022 µH/ft (0.072 µH/m); Max. Current: 9.8 Amps per Conductor at 30ºC
  • UL Voltage Rating: 300 V

Mechanical Characteristics

  • UL Temperature: 80°C; Operating: -20°C to +80°C
  • Stationary Min.: 1.240 in (31.50 mm); Installation Min.: 1.240 in
  • Max. Pull Tension: 162.7 lbs (73.80 kg)
  • Bulk Cable Weight: 65 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor
  • Flammability / Reaction to Fire: FT2
  • AWM Compliance: AWM 2937
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

History

  • Update and Revision: Revision Number: 0.228 Revision Date: 09-07-2025

Resources

Belden 9773MN Product Information
