Belden 9772 060500 Audio & Instrumentation, 12 Triads 22 AWG (36C) TC, Individually Jacketed - Chrome, 500 ft Reel

$6,422.99
SKU:
9772 060500
Shipping:
Calculated at Checkout
Color:
Chrome
Length:
500 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
9772
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

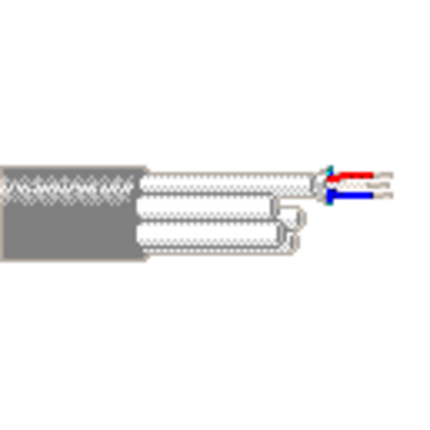

Belden 9772 060500 Audio & Instrumentation, 12 Triads 22 AWG (36C) TC, Individually Jacketed

12 Individually jacketed triads 22 AWG stranded (7x30) TC conductors, polypropylene insulation, 22 AWG stranded TC drain wire, overall PVC jacket.

Ordering Details

  • Manufacturer Part Number: 9772 060500
  • Color: Chrome
  • Length: 500 ft
  • Put-Up: Reel
  • UPC/EAN: 612825358138
  • Manufacturer Footnote: C

Supplied as one 500 ft Reel.

Product Overview

  • Suitable Applications: low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring

Construction Details

  • Element: Triad(s); Size: 22 AWG; Stranding: 7x30; Material: TC - Tinned Copper
  • Element: Triad(s); Material: PP - Polypropylene; Nom. Insulation Diameter: 0.046 in mm; Color Code: Black, Red, Green
  • Color Code: Black, Red, Green, Yellow, Blue, Brown, Orange, Grey, Violet, Black/Black, Red/Black, Green/Black; Notes: Colors Indicated here is for Inner Jacket
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 22 AWG (7x30) TC
  • Material: PVC - Polyvinyl Chloride; Nom. Diameter: 0.150 in (3.81 mm)
  • Material: No Shield
  • Separator: Paper Tape; Material: PVC - Polyvinyl Chloride; Nom. Diameter: 0.725 in; Ripcord: Yes
  • Overall Cable Diameter (Nominal): 0.725 in

Electrical Characteristics

  • UL Voltage Rating: 300 V

Mechanical Characteristics

  • UL Temperature: 80°C; Operating: -20°C To +80°C
  • Stationary Min.: 2.32 in (58.9 mm); Installation Min.: 2.32 in
  • Max. Pull Tension: 327.6 lbs (148.6 kg)
  • Bulk Cable Weight: 257lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
  • Flammability / Reaction to Fire: VW-1, IEC 60332-1-2
  • CPR Compliance: CPR Euroclass: Eca
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

  • Notes: Each triad shielded with 100% Beldfoil« shield and drain wire, encased in a .020"" white PVC jacket with color coded stripes.

History

  • Update and Revision: Revision Number: 0.370 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP.

Resources

Belden 9772 Product Information
