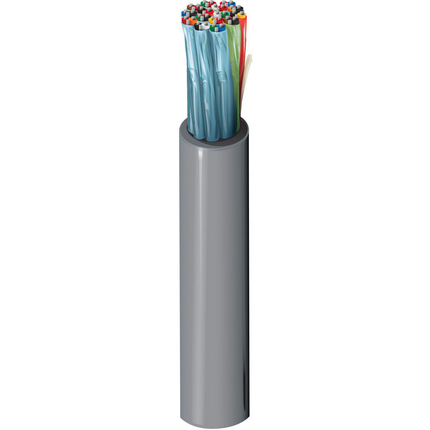

Belden 9769 0601000 Audio, Control & Instrument, #22-17pr, PP, Indiv. Foil, PVC Jkt, CM - illustration only; refer to description for cable color and put-up

Belden 9769 0601000 Audio, Control & Instrument, #22-17pr, PP, Indiv. Foil, PVC Jkt, CM - Chrome, 1,000 ft Reel

$25,832.99
SKU:
9769 0601000
Shipping:
Calculated at Checkout
Color:
Chrome
Length:
1,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
9769
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 9769 0601000 Audio, Control & Instrument, #22-17pr, PP, Indiv. Foil, PVC Jkt, CM

Audio, Control & Instrument Cable, 17-Pair, 22 AWG stranded (7x30) tinned copper conductor, polypropylene insulation, individually shielded pairs with Beldfoil® (100% coverage), overall PVC jacket and 22 AWG stranded tinned copper drain wire.

Ordering Details

  • Manufacturer Part Number: 9769 0601000
  • Color: Chrome
  • Length: 1,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825258360
  • Manufacturer Footnote: C

Supplied as one 1,000 ft Reel.

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring

Construction Details

  • Element: Pair(s); No. of Elements: 17; Size: 22 AWG; Stranding: 7x30; Material: TC - Tinned Copper
  • Element: Pair(s); Material: PP - Polypropylene; Nom. Thickness: 0.0105 in (0.267 mm); Nom. Insulation Diameter: 0.050 in (1.3 mm); Color Code: Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown, Black & Orange, Red & White, Red & Green, Red & Blue, Red & Yellow, Red & Brown, Red & Orange, Green & White, Green & Blue, Green & Yellow, Green & Brown
  • Element: Pair(s); Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 22 AWG (7x30) TC; Notes: Each pair
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.052 in (1.3 mm); Nom. Diameter: 0.577 in (14.7 mm)
  • Overall Cable Diameter (Nominal): 0.577 in (14.7 mm)

Electrical Characteristics

  • Element: Pair(s); Nom. Conductor DCR: 18.2 Ohm/1000ft; Nom. Inner Shield DCR: 12.4 Ohm/1000ft (40.7 Ohm/km); Nom. Capacitance Cond-to-Cond: 30 pF/ft (98 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 55 pF/ft (180 pF/m); Nom. Characteristic Impedence: 50 Ohm; Nom. Delay: 1.4 ns/ft; Nom. Inductance: 0.18 µH/ft (0.59 µH/m); Nom. Velocity of Prop.: 66%; Max. Current: 1.4 Amps per Conductor at 25ºC
  • UL Voltage Rating: 300 V (CM), 30 V (AWM 2919)

Mechanical Characteristics

  • UL Temperature: 80°C; Operating: -20°C to +80°C
  • Stationary Min.: 5.7 in (140 mm); Installation Min.: 5.7 in (140 mm)
  • Max. Pull Tension: 464 lbs (210 kg)
  • Bulk Cable Weight: 188 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor
  • Flammability / Reaction to Fire: UL 1685 FT4 Loading
  • NEC / UL Compliance: Article 800, CM
  • AWM Compliance: AWM 2919
  • CEC / C(UL) Compliance: CM
  • European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.478 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP.
