Belden 9735 0601000 RS232/422 Low Cap, #24-15pr, FPE, Indiv. Foil, PVC Jkt, CM, 100Ω - Chrome, 1,000 ft Reel

$29,282.99
SKU:
9735 0601000
Shipping:
Calculated at Checkout
Color:
Chrome
Length:
1,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
9735
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 9735 0601000 RS232/422 Low Cap, #24-15pr, FPE, Indiv. Foil, PVC Jkt, CM, 100Ω

Computer EIA RS-232/422, Digital Audio Cable, 15-Pair, 24 AWG stranded (7x32) tinned copper conductors, Datalene® insulation, individually shielded with Beldfoil® (100% coverage), 24 AWG stranded tinned copper drain wire, overall PVC jacket.

Ordering Details

  • Manufacturer Part Number: 9735 0601000
  • Color: Chrome
  • Length: 1,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825257844
  • Manufacturer Footnote: C

Supplied as one 1,000 ft Reel.

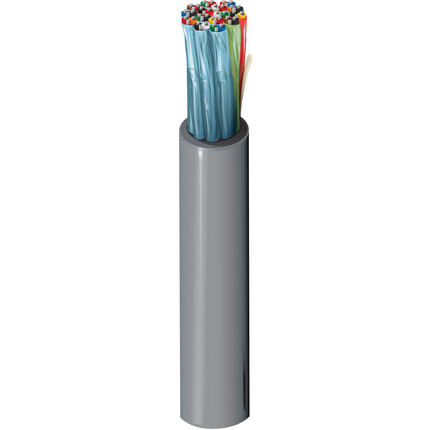

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: RS-422 applications; computer communications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); digital audio; panel wiring

Construction Details

  • Element: Pair(s); No. of Elements: 15; Size: 24 AWG; Stranding: 7x32; Material: TC - Tinned Copper
  • Element: Pair(s); Material: PE - Polyethylene (Foam); Nom. Thickness: 0.0185 in (0.470 mm); Color Code: Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown, Black & Orange, Red & White, Red & Green, Red & Blue, Red & Yellow, Red & Brown, Red & Orange, Green & White, Green & Blue
  • Element: Pair(s); Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 24 AWG (7x32) TC; Notes: each pair
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.065 in (1.7 mm); Nom. Diameter: 0.639 in (16.2 mm)
  • Overall Cable Diameter (Nominal): 0.639 in (16.2 mm)

Electrical Characteristics

  • Element: Pair(s); Nom. Conductor DCR: 24 Ohm/1000ft (79 Ohm/km); Nom. Capacitance Cond-to-Cond: 12.5 pF/ft (41.0 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 23.2 pF/ft (76.1 pF/m); Nom. Characteristic Impedence: 100 Ohm; Nom. Inductance: 0.23 µH/ft (0.75 µH/m); Nom. Velocity of Prop.: 76%; Max. Current: 1.9 Amps per Conductor at 25ºC
  • Frequency: 0.384 MHz; Nom. Insertion Loss (Attenuation) [dB/100ft]: 0.74
  • Frequency: 0.705 MHz; Nom. Insertion Loss (Attenuation) [dB/100ft]: 0.87
  • Frequency: 0.768 MHz; Nom. Insertion Loss (Attenuation) [dB/100ft]: 0.88
  • Frequency: 1.024 MHz; Nom. Insertion Loss (Attenuation) [dB/100ft]: 0.94
  • Frequency: 1.411 MHz; Nom. Insertion Loss (Attenuation) [dB/100ft]: 1.01
  • Frequency: 1.536 MHz; Nom. Insertion Loss (Attenuation) [dB/100ft]: 1.03
  • Frequency: 2.048 MHz; Nom. Insertion Loss (Attenuation) [dB/100ft]: 1.13
  • Frequency: 2.822 MHz; Nom. Insertion Loss (Attenuation) [dB/100ft]: 1.29
  • Frequency: 3.072 MHz; Nom. Insertion Loss (Attenuation) [dB/100ft]: 1.35
  • Frequency: 4.096 MHz; Nom. Insertion Loss (Attenuation) [dB/100ft]: 1.57
  • Frequency: 5.644 MHz; Nom. Insertion Loss (Attenuation) [dB/100ft]: 1.78
  • Frequency: 6.144 MHz; Nom. Insertion Loss (Attenuation) [dB/100ft]: 1.84
  • Frequency: 8.192 MHz; Nom. Insertion Loss (Attenuation) [dB/100ft]: 2.13
  • Frequency: 11.289 MHz; Nom. Insertion Loss (Attenuation) [dB/100ft]: 2.45
  • Frequency: 12.288 MHz; Nom. Insertion Loss (Attenuation) [dB/100ft]: 2.57
  • Frequency: 24.576 MHz; Nom. Insertion Loss (Attenuation) [dB/100ft]: 3.57
  • UL Voltage Rating: 300 V (CM), 300 V (UL AWM 2493)

Mechanical Characteristics

  • UL Temperature: 60°C (UL AWM 2493); Operating: -20°C to +80°C
  • Max. Pull Tension: 250 lbs (110 kg)
  • Bulk Cable Weight: 169 lbs/1000ft (251 kg/km)

Standards and Compliance

  • Environmental Suitability: Indoor
  • Flammability / Reaction to Fire: UL1685 UL Loading
  • NEC / UL Compliance: Article 800, CM
  • AWM Compliance: AWM 2493
  • CEC / C(UL) Compliance: CM
  • European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

  • Notes: Datalene® insulation features include low dielectric constant and a dissipation factor for high-speed, low-distortion data handling. Physical properties include good crush resistance and light weight.

History

  • Update and Revision: Revision Number: 0.335 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP.

Resources

Belden 9735 Product Information
