Description

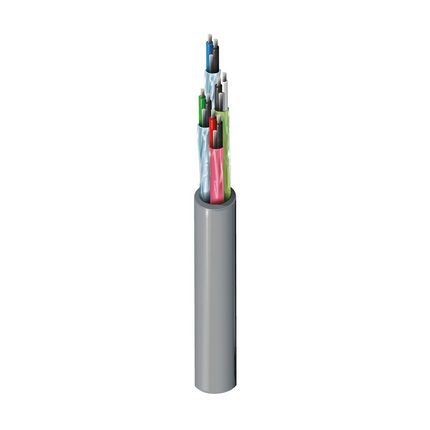

Belden 9728 0605000 RS232/422 Low Cap, #24-4pr, FPE, Indiv. Foil, PVC Jkt, CM, 100Ω
Computer EIA RS-232/422, Digital Audio Cable, 4-Pair, 24 AWG stranded (7x32) tinned copper conductors, Datalene® insulation, individually Beldfoil® shielded (100% coverage) each with 24 AWG stranded tinned copper drain wire, overall PVC jacket.
Ordering Details
- Manufacturer Part Number: 9728 0605000
- Color: Chrome
- Length: 5,000 ft
- Put-Up: Reel
- UPC/EAN: 612825257523
Supplied as one 5,000 ft Reel.
Product Overview
- Suitable Applications: RS-422 applications; computer communications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); digital audio; panel wiring
Construction Details
- Element: Pair(s); No. of Elements: 4; Size: 24 AWG; Stranding: 7x32; Material: TC - Tinned Copper
- Element: Pair(s); Material: PE - Polyethylene (Foam); Nom. Thickness: 0.019 in (0.48 mm); Nom. Insulation Diameter: 0.061 in (1.5 mm); Color Code: Black & Red, Black & White, Black & Green, Black & Blue
- Element: Pair(s); Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 24 AWG (7x32) TC; Notes: each pair
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.048 in (1.2 mm); Nom. Diameter: 0.363 in (9.22 mm)
- Overall Cable Diameter (Nominal): 0.363 in (9.22 mm)
Electrical Characteristics
- Element: Pair(s); Nom. Conductor DCR: 28.8 Ohm/1000ft; Nom. Inner Shield DCR: 17.42 Ohm/1000ft (57.15 Ohm/km); Nom. Capacitance Cond-to-Cond: 12.5 pF/ft (41.0 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 23.2 pF/ft (76.1 pF/m); Nom. Characteristic Impedence: 100 Ohm; Nom. Inductance: 0.23 µH/ft (0.75 µH/m); Nom. Velocity of Prop.: 76%; Max. Current: 2.2 Amps per Conductor at 25ºC
- Frequency [MHz]: 0.384; Nom. Insertion Loss (Attenuation): 0.74 dB/100ft
- Frequency [MHz]: 0.7056; Nom. Insertion Loss (Attenuation): 0.87 dB/100ft
- Frequency [MHz]: 0.768; Nom. Insertion Loss (Attenuation): 0.88 dB/100ft
- Frequency [MHz]: 1.024; Nom. Insertion Loss (Attenuation): 0.94 dB/100ft
- Frequency [MHz]: 1.4112; Nom. Insertion Loss (Attenuation): 1.01 dB/100ft
- Frequency [MHz]: 1.536; Nom. Insertion Loss (Attenuation): 1.03 dB/100ft
- Frequency [MHz]: 2.048; Nom. Insertion Loss (Attenuation): 1.13 dB/100ft
- Frequency [MHz]: 2.8224; Nom. Insertion Loss (Attenuation): 1.29 dB/100ft
- Frequency [MHz]: 3.072; Nom. Insertion Loss (Attenuation): 1.35 dB/100ft
- Frequency [MHz]: 4.096; Nom. Insertion Loss (Attenuation): 1.57 dB/100ft
- Frequency [MHz]: 5.6448; Nom. Insertion Loss (Attenuation): 1.78 dB/100ft
- Frequency [MHz]: 6.144; Nom. Insertion Loss (Attenuation): 1.84 dB/100ft
- Frequency [MHz]: 8.192; Nom. Insertion Loss (Attenuation): 2.13 dB/100ft
- Frequency [MHz]: 11.2896; Nom. Insertion Loss (Attenuation): 2.45 dB/100ft
- Frequency [MHz]: 12.288; Nom. Insertion Loss (Attenuation): 2.57 dB/100ft
- Frequency [MHz]: 24.576; Nom. Insertion Loss (Attenuation): 3.57 dB/100ft
- UL Voltage Rating: 300 V (CM), 30 V (UL AWM 2919)
Mechanical Characteristics
- UL Temperature: 80°C; Operating: -20°C to +80°C
- Stationary Min.: 3.6 in (91 mm); Installation Min.: 3.6 in (91 mm)
- Max. Pull Tension: 50 lbs (23 kg)
- Bulk Cable Weight: 51 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor
- Flammability / Reaction to Fire: UL 1685 FT4 Loading, IEC 60332-1-2
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: Article 800, CM
- AWM Compliance: AWM 2919
- CEC / C(UL) Compliance: CM
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
- Plenum Number: 89728
Product Notes
- Notes: Datalene® insulation features include low dielectric constant and a dissipation factor for high-speed, low-distortion data handling. Physical properties include good crush resistance and light weight.
History
- Update and Revision: Revision Number: 0.572 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
