Description

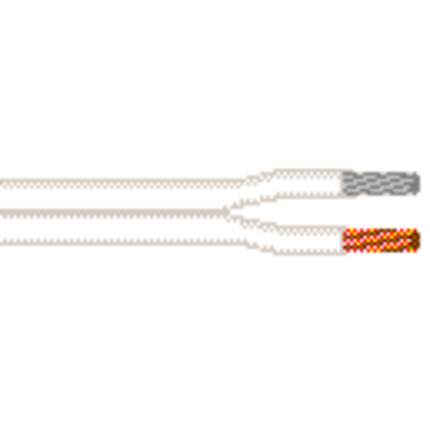

Belden 9717 3681000 Speaker Cable, 2 Conductor 14 AWG BC, Unshielded, CM
2 Conductor 14 AWG stranded (19x27) ETP high-conductivity copper conductors, PVC insulation, parallel: (1) tinned, (1) bare.
Ordering Details
- Manufacturer Part Number: 9717 3681000
- Color: Clear, Transparent
- Length: 1,000 ft
- Put-Up: Reel
- UPC/EAN: 612825257332
- Manufacturer Footnote: C
Supplied as one 1,000 ft Reel.
Manufacturer Status: Discontinued
Product Overview
- Suitable Applications: Speaker Cable
Product Life Cycle
- Life Cycle: Discontinued - the product is no longer manufactured
- Discontinuation Announcement Date: 2024-04-29
Construction Details
- Size: 14; Stranding: 19x27; Material: TC - Tinned Copper (High Conductivity)
- Size: 14; Stranding: 19x27; Material: BC - Bare Copper
- Material: PVC - Polyvinyl Chloride
- Material: No Shield
- Material: PVC - Polyvinyl Chloride; Nom. Diameter: 0.146 x 0.292 in
Electrical Characteristics
- Voltage Rating: 300 V RMS
Mechanical Characteristics
- Operating: -20°C To +60°C
- Max. Pull Tension: 125 lbs (56.7 kg)
- Bulk Cable Weight: 40 lbs/1000ft (60 kg/km)
Standards and Compliance
- Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
- Flammability / Reaction to Fire: IEC 60332-1-2
- CPR Compliance: CPR Euroclass: Eca
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.359 Revision Date: 07-30-2026
- Footnote: C - CRATE REEL PUT-UP.
