Belden 9641 0081000 IEEE-488, #26-6pr+10c, #24-1c, SR-PVC, O/A Foil+Braid, PVC Jkt, CMG
Computer EIA RS-488 Cable, 26 AWG stranded (7x34) and 24 AWG stranded (7x32) tinned copper conductors, semi-rigid PVC insulation, overall Beldfoil® (100% Coverage) + Tinned copper braid shield (90% Coverage), drain wire, PVC jacket.
Ordering Details
- Manufacturer Part Number: 9641 0081000
- Color: Gray
- Length: 1,000 ft
- Put-Up: Reel
- UPC/EAN: 612825256861
- Manufacturer Footnote: C
Supplied as one 1,000 ft Reel.

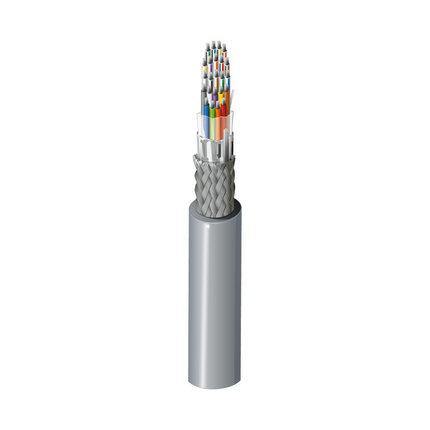

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: IEEE 488 interface; computer communications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; panel wiring
Construction Details
- Element: Pair(s); No. of Elements: 6; Size: 26 AWG; Stranding: 7x34; Material: TC - Tinned Copper
- Element: Conductor(s); No. of Elements: 10; Size: 26 AWG; Stranding: 7x34; Material: TC - Tinned Copper
- Element: Conductor(s); No. of Elements: 1; Size: 24 AWG; Stranding: 7x32; Material: TC - Tinned Copper
- Element: Pair(s); Material: SR-PVC - Polyvinyl Chloride (Semi-Rigid); Nom. Thickness: 0.01 in (0.25 mm); Nom. Insulation Diameter: 0.039 in mm; Color Code: Blue & White/Gray, Purple & White/Black/Brown, Gray & White/Black/Red, White & White/Black/Orange, White/Black & White/Black/Yellow, White/Brown & White/Black/Green
- Element: Conductor(s); Material: SR-PVC - Polyvinyl Chloride (Semi-Rigid); Nom. Thickness: 0.01 in (0.25 mm); Nom. Insulation Diameter: 0.039 in in; Color Code: Red, Orange, Yellow, Lt. Green, White/Orange, White/Yellow, White/Green, White/Blue, White/Purple
- Element: Conductor(s); Material: SR-PVC - Polyvinyl Chloride (Semi-Rigid); Color Code: White/Black/Blue
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 22 AWG (7x30) TC
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 26 AWG (7x34) TC
- Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 90%
- Separator: Polyester Tape; Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.035 in (0.89 mm); Nom. Diameter: 0.350 in
- Overall Cable Diameter (Nominal): 0.350 in
Electrical Characteristics
- Element: Pair(s); Nom. Conductor DCR: 46.17 Ohm/1000ft; Max. Current: 1.12 Amps per Conductor at 25ºC (26 AWG)
- Element: Conductor(s); Nom. Conductor DCR: 45.5 Ohm/1000ft (149 Ohm/km); Max. Current: 1.1 Amps per Conductor at 25ºC (26 AWG)
- Element: Conductor(s); Nom. Conductor DCR: 28.2 Ohm/1000ft (92.5 Ohm/km); Max. Current: 3.36 Amps per Conductor at 25ºC (24 AWG)
- Nom Outer Shield DCR: 2.6 Ohm/1000ft (8.5 Ohm/km)
- UL Voltage Rating: 300 V (CMG), 300 V (AWM 2464)
Mechanical Characteristics
- UL Temperature: 80°C; Operating: -20°C To +80°C
- Stationary Min.: 3.5 in (89 mm); Installation Min.: 3.5 in
- Max. Pull Tension: 86 lbs (39 kg)
- Bulk Cable Weight: 74 lbs/1000ft
Standards and Compliance
- Flammability / Reaction to Fire: UL 1685 FT4 loading, FT4
- NEC / UL Compliance: Article 800, CMG
- AWM Compliance: AWM 2464, AWM I A
- CEC / C(UL) Compliance: CMG
- IEEE Compliance: 488
- European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.389 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
