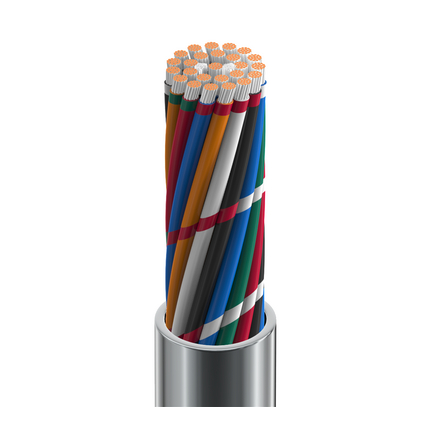

Belden 9626 0605000 Electronic, 25 C #18 Str TC, PVC Ins, PVC Jkt, CMG
Electronic, 25 Conductor 18AWG (19x30) Tinned Copper, PVC Insulation, PVC Outer Jacket, CMG
Ordering Details
- Manufacturer Part Number: 9626 0605000
- Color: Chrome
- UPC/EAN: 612825256847
- Manufacturer Footnote: C Z
Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; voice communications; panel wiring
Construction Details
- Element: Conductor(s); No. of Elements: 25; Size: 18 AWG; Stranding: 19x30; Material: TC - Tinned Copper
- Element: Conductor(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.018 in (0.46 mm); Nom. Insulation Diameter: 0.080 in (2.0 mm); Color Code: Black, White, Red, Green, Orange, Blue, White/Black Stripe, Red/Black Stripe, Green/Black Stripe, Orange/Black Stripe, Blue/Black Stripe, Black/White Stripe, Red/White Stripe, Green/White Stripe, Blue/White Stripe, Black/Red Stripe, White/Red Stripe, Orange/Red Stripe, Blue/Red Stripe, Red/Green Stripe, Orange/Green Stripe, Black/White/Red Stripes, White/Black/Red Stripes, Red/Black/White Stripes, Green/Black/White Stripes
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.060 in (1.5 mm); Nom. Diameter: 0.612 in (15.5 mm)
- Overall Cable Diameter (Nominal): 0.612 in (15.5 mm)
Electrical Characteristics
- Element: Conductor(s); Nom. Conductor DCR: 6.3 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 26 pF/ft (85 pF/m); Max. Current: 2.5 Amps per Conductor at 25ºC
- UL Voltage Rating: 300 V (CMG), 300 V (UL AWM 2598)
Mechanical Characteristics
- UL Temperature: 60°C; Operating: -20°C to +60°C; Installation: 60°C (UL AWM Style 2598)
- Stationary Min.: 6.1 in (150 mm); Installation Min.: 6.1 in (150 mm)
- Max. Pull Tension: 618 lbs (280 kg)
- Bulk Cable Weight: 244 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
- Sustainability: CA Prop 65
- Flammability / Reaction to Fire: UL 1685 FT4 Loading, FT4, IEC 60332-1-2
- NEC / UL Compliance: Article 800, CMG
- AWM Compliance: AWM 2092
- CEC / C(UL) Compliance: CMG
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.419 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP., Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.
