Belden 9622 0601000 Electronic, 25 C #16 Str TC, PVC Ins, PVC Jkt - Chrome

$49,782.99
SKU:
9622 0601000
Shipping:
Calculated at Checkout
Color:
Chrome
Manufacturer Status:
Active
Product Family:
9622
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 9622 0601000 Electronic, 25 C #16 Str TC, PVC Ins, PVC Jkt

Electronic, 25 Conductor 16AWG (19x29) Tinned Copper, PVC Insulation, PVC Outer Jacket

Ordering Details

  • Manufacturer Part Number: 9622 0601000
  • Color: Chrome
  • UPC/EAN: 612825256755
  • Manufacturer Footnote: C

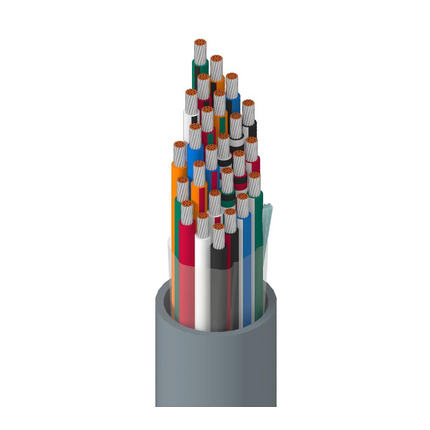

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: Analog Signals & Control (up to 600V); Line Level Audio; Voice Communications; Panel Wiring

Construction Details

  • Element: Conductor(s); No. of Elements: 25; Size: 16 AWG; Stranding: 19x29; Material: TC - Tinned Copper
  • Element: Conductor(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.031 in (0.79 mm); Nom. Insulation Diameter: 0.121 in (3.07 mm); Color Code: Black, White, Red, Green, Orange, Blue, White/Black Stripe, Red/Black Stripe, Green/Black Stripe, Orange/Black Stripe, Blue/Black Stripe, Black/White Stripe, Red/White Stripe, Green/White Stripe, Blue/White Stripe, Black/Red Stripe, White/Red Stripe, Orange/Red Stripe, Blue/Red Stripe, Red/Green Stripe, Orange/Green Stripe, Black/White/Red Stripes, White/Black/Red Stripes, Red/Black/White Stripes, Green/Black/White Stripes
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.065 in (1.7 mm); Nom. Diameter: 0.879 in (22.3 mm)
  • Overall Cable Diameter (Nominal): 0.879 in (22.3 mm)

Electrical Characteristics

  • Element: Conductor(s); Nom. Conductor DCR: 4.4 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 19.5 pF/ft (64.0 pF/m); Max. Current: 3.5 Amps per Conductor at 25ºC
  • Voltage Rating: 600 V

Mechanical Characteristics

  • Operating: -20°C to +80°C
  • Stationary Min.: 8.8 in (220 mm); Installation Min.: 8.8 in (220 mm)
  • Max. Pull Tension: 810 lbs (370 kg)
  • Bulk Cable Weight: 440 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
  • Sustainability: CA Prop 65
  • Flammability / Reaction to Fire: UL 1581 (VW-1), IEC 60332-1-2, VW-1
  • European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.502 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP.

Resources

Belden 9622 Product Information
