Belden 9617 0601000 RS232, #24-25c, SR-PVC, O/A Foil+Braid, PVC Jkt, CMG - Chrome, 1,000 ft Reel

$24,738.99
SKU:
9617 0601000
Shipping:
Calculated at Checkout
Color:
Chrome
Length:
1,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
9617
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

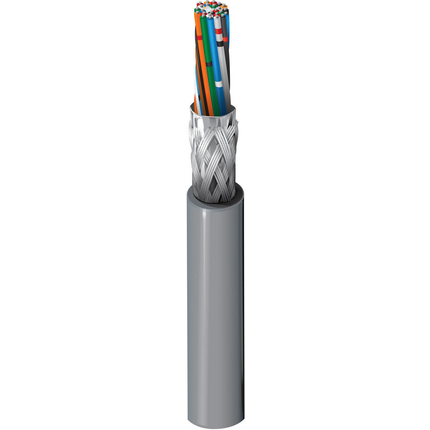

Belden 9617 0601000 RS232, #24-25c, SR-PVC, O/A Foil+Braid, PVC Jkt, CMG

Computer EIA RS-232 Cable, 24 AWG stranded (7x32) tinned copper conductors, semi-rigid PVC insulation, overall Beldfoil® (100% coverage) + tinned copper braid shield (65% coverage), PVC jacket

Ordering Details

  • Manufacturer Part Number: 9617 0601000
  • Color: Chrome
  • Length: 1,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825256564
  • Manufacturer Footnote: C

Supplied as one 1,000 ft Reel.

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: RS-232 applications; Computer Communications; Low Voltage Analog signals (4-20ma, 0-10v, ...); Low Voltage Digital control (24v, …); Line Level Audio; Panel Wiring

Construction Details

  • Element: Conductor(s); No. of Elements: 25; Size: 24 AWG; Stranding: 7x32; Material: TC - Tinned Copper
  • Element: Conductor(s); Material: SR-PVC - Polyvinyl Chloride (Semi-Rigid); Nom. Thickness: 0.011 in (0.28 mm); Nom. Insulation Diameter: 0.044 in (1.1 mm); Color Code: Black, White, Red, Green, Orange, Blue, White/Black Stripe, Red/Black Stripe, Green/Black Stripe, Orange/Black Stripe, Blue/Black Stripe, Black/White Stripe, Red/White Stripe, Green/White Stripe, Blue/White Stripe, Black/Red Stripe, White/Red Stripe, Orange/Red Stripe, Blue/Red Stripe, Red/Green Stripe, Orange/Green Stripe, Black/White/Red Stripes, White/Black/Red Stripes, Red/Black/White Stripes, Green/Black/White Stripes
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%
  • Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 65%
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.037 in (0.94 mm); Nom. Diameter: 0.370 in (9.40 mm)
  • Overall Cable Diameter (Nominal): 0.370 in (9.40 mm)

Electrical Characteristics

  • Element: Conductor(s); Nom. Conductor DCR: 25 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 30 pF/ft (98 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 55 pF/ft (180 pF/m); Max. Current: 1.1 Amps per Conductor at 25ºC
  • Nom Outer Shield DCR: 5.1 Ohm/1000ft (17 Ohm/km)
  • UL Voltage Rating: 300 V (CMG), 300 V (UL AWM 2464)

Mechanical Characteristics

  • UL Temperature: 80°C; Operating: -30°C to +80°C
  • Stationary Min.: 3.7 in (94 mm); Installation Min.: 3.7 in (94 mm)
  • Max. Pull Tension: 167 lbs (75.7 kg)
  • Bulk Cable Weight: 89 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
  • Flammability / Reaction to Fire: UL 1685 FT4 Loading, FT4
  • NEC / UL Compliance: Article 800, CMG
  • AWM Compliance: AWM 2464
  • CEC / C(UL) Compliance: CMG
  • European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.499 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP.

Resources

Belden 9617 Product Information
