Description

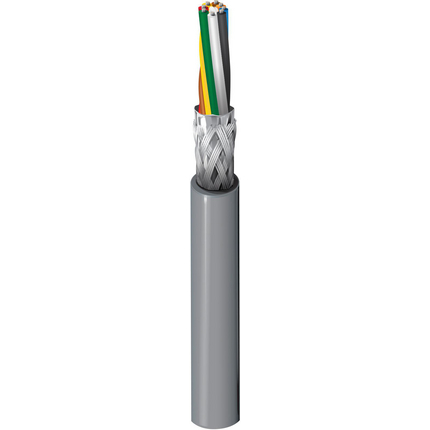

Belden 9613 060100 RS232, #24-8c, SR-PVC, O/A Foil+Braid, PVC Jkt, CMG
Computer EIA RS-232 Cable, 24 AWG stranded (7x32) tinned copper conductors, semi-rigid PVC insulation, overall Beldfoil® (100% coverage) + tinned copper braid shield (65% coverage), PVC jacket.
Ordering Details
- Manufacturer Part Number: 9613 060100
- Color: Chrome
- Length: 100 ft
- Put-Up: Reel
- UPC/EAN: 612825256434
Supplied as one 100 ft Reel.
Product Overview
- Suitable Applications: RS-232 applications; Computer Communications; Low Voltage Analog signals (4-20ma, 0-10v, ...); Low Voltage Digital control (24v, …); Line Level Audio; Panel Wiring
Construction Details
- Element: Conductor(s); No. of Elements: 8; Size: 24 AWG; Stranding: 7x32; Material: TC - Tinned Copper
- Element: Conductor(s); Material: SR-PVC - Polyvinyl Chloride (Semi-Rigid); Nom. Thickness: 0.011 in (0.28 mm); Color Code: Black, White, Red, Green, Brown, Blue, Orange, Yellow
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%
- Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 65%
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.035 in (0.89 mm); Nom. Diameter: 0.240 in (6.10 mm)
- Overall Cable Diameter (Nominal): 0.240 in (6.10 mm)
Electrical Characteristics
- Element: Conductor(s); Nom. Conductor DCR: 25 Ohm/1000ft (82 Ohm/km); Nom. Capacitance Cond-to-Cond: 30 pF/ft (98 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 55 pF/ft (180 pF/m); Max. Current: 1.5 Amps per Conductor at 25ºC
- Nom Outer Shield DCR: 7.3 Ohm/1000ft (24 Ohm/km)
- UL Voltage Rating: 300 V (CMG), 300 V (UL AWM 2464)
Mechanical Characteristics
- UL Temperature: 80°C (UL AWM 2464); Operating: -30°C to +80°C
- Stationary Min.: 2.4 in (61 mm); Installation Min.: 2.4 in (61 mm)
- Max. Pull Tension: 69 lbs (31 kg)
- Bulk Cable Weight: 37 lbs/1000ft (55 kg/km)
Standards and Compliance
- Environmental Suitability: Indoor
- Flammability / Reaction to Fire: UL1685 FT4 Loading, FT4, IEC 60332-1-2
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: Article 800, CMG
- AWM Compliance: AWM 2464
- CEC / C(UL) Compliance: CMG
- European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.354 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
