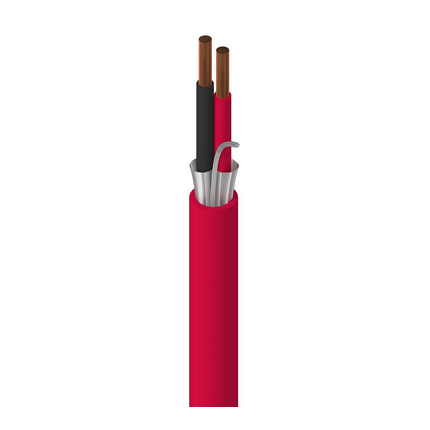

Belden 9574 002U500 Electronic, 2 C #18 Sol BC, PVC Ins, OS, Red PVC Jkt, FPLR
Electronic, 2 Conductor 18AWG (Solid) Bare Copper, PVC Insulation, Overall Beldfoil® Shield, Red PVC Outer Jacket, FPLR
Ordering Details
- Manufacturer Part Number: 9574 002U500
- Color: Red
- UPC/EAN: 612825256137
Product Overview
- Suitable Applications: fire alarms; indoor applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …)
Construction Details
- Element: Conductor(s); No. of Elements: 2; Size: 18; Stranding: Solid; Material: BC - Bare Copper
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.017 in (0.43 mm); Nom. Insulation Diameter: 0.60 in (15 mm); Color Code: Black, Red
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 22 AWG (7x30) TC
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.037 in (0.94 mm); Nom. Diameter: 0.231 in (5.87 mm)
Electrical Characteristics
- Nom. Conductor DCR: 2.62 Ohm/1000ft (8.60 Ohm/km); Nom. Capacitance Cond-to-Cond: 58 pF/ft (190 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 108 pF/ft (354 pF/m); Nom. Inductance: 0.102 µH/ft (0.335 µH/m); Max. Current: 5.3 Amps per Conductor at 25ºC
- Nom Outer Shield DCR: 10.9 Ohm/1000ft (35.8 Ohm/km)
- UL Voltage Rating: 300 V
Mechanical Characteristics
- UL Temperature: 105°C; Operating: -40°C To +105°C
- Stationary Min.: 3.46 in (87.9 mm); Installation Min.: 3.46 in (87.9 mm)
- Max. Pull Tension: 50 lbs (23 kg)
- Bulk Cable Weight: 30 lbs/1000ft (45 kg/km)
Standards and Compliance
- Environmental Suitability: Indoor, Sunlight Resistance
- Flammability / Reaction to Fire: UL1666 Riser, FT4, IEC 60332-1-2
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: Article 760, Article 800, CMR, FPLR
- AWM Compliance: AWM 2464
- CEC / C(UL) Compliance: FAS105
- European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.584 Revision Date: 09-07-2025
