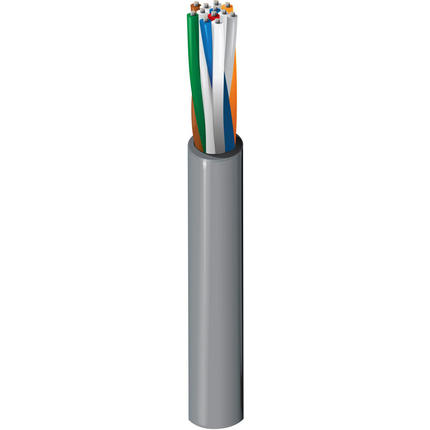

Belden 9566 0601000 Audio, Control & Instrument, #24-6pr, PVC, PVC Jkt, CMG
Audio, Control & Instrument Cable, 24 AWG solid tinned copper conductors, PVC insulation, twisted pairs, PVC jacket.
Ordering Details
- Manufacturer Part Number: 9566 0601000
- Color: Chrome
- Length: 1,000 ft
- Put-Up: Reel
- UPC/EAN: 612825256045
- Manufacturer Footnote: C
Supplied as one 1,000 ft Reel.
Product Overview
- Suitable Applications: telephone cables; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); voice communications
Construction Details
- Element: Pair(s); No. of Elements: 6; Size: 24; Stranding: Solid; Material: TC - Tinned Copper
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.01 in (0.25 mm); Nom. Insulation Diameter: 0.041 in (1.0 mm); Color Code: White & Blue, White & Orange, White & Green, White & Brown, White & Gray, Red & Blue
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.032 in (0.81 mm); Nom. Diameter: 0.289 in
Electrical Characteristics
- Nom. Conductor DCR: 32.8 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 22 pF/ft (72 pF/m); Max. Current: 1.4 Amps per Conductor at 20ºC
- UL Voltage Rating: 300 V (CMG), 150 V (AWM 2576)
Mechanical Characteristics
- UL Temperature: 80°C; Operating: -20°C To +80°C
- Stationary Min.: 2.89 in (73.4 mm); Installation Min.: 2.89 in
- Max. Pull Tension: 61 lbs (28 kg)
- Bulk Cable Weight: 40 lbs/1000ft
Standards and Compliance
- Flammability / Reaction to Fire: UL1685 FT4 Loading, FT4, IEC 60332-1-2
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: Article 800, CMG
- AWM Compliance: AWM 2576
- CEC / C(UL) Compliance: CMG
- European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.334 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
