Description
Belden 9563 0601000 High Perform Instr, 11 Pr #18 Str TC, PVC Ins E2, OS, PVC Jkt, PLTC
High Performance Instrumentation, 11 Pair 18AWG (19x30) Tinned Copper, PVC Insulation E2 Color Code, Overall Beldfoil® Shield, PVC Outer Jacket, PLTC
Ordering Details
- Manufacturer Part Number: 9563 0601000
- Color: Chrome
- UPC/EAN: 612825255987
- Manufacturer Footnote: C

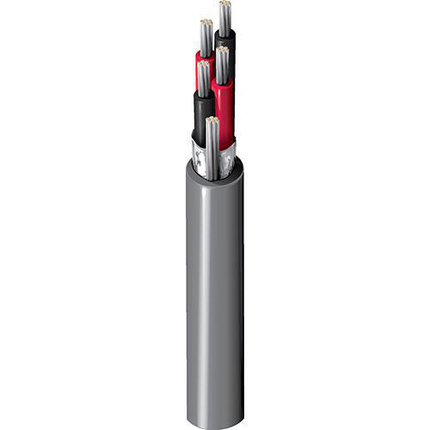

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Industrial Control, Raceways Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, ...),low voltage digital control (24v, …), encoders, control circuits, distributed control
Construction Details
- Element: Pair(s); No. of Elements: 11; Size: 18 AWG; Stranding: 19x30; Material: TC - Tinned Copper
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.017 in (0.43 mm); Nom. Insulation Diameter: 0.078 in (2.0 mm); Color Code: Black, Red and Numbered
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 18 AWG (7x26) TC
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.063 in (1.6 mm); Nom. Diameter: 0.682 in; Ripcord: Yes
Electrical Characteristics
- Nom. Conductor DCR: 7.19 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 35 pF/ft (110 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 54 pF/ft (180 pF/m); Nom. Inductance: 0.17 µH/ft (0.56 µH/m); Max. Current: 7 Amps per Conductor at 25ºC
- Nom Outer Shield DCR: 0.81 Ohm/1000ft (2.7 Ohm/km)
- UL Voltage Rating: 300 V (PLTC)
Mechanical Characteristics
- UL Temperature: 105°C; Operating: -30°C To +105°C
- Max. Pull Tension: 565.8 lbs (256.6 kg)
- Bulk Cable Weight: 250 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor, Outdoor, Sunlight Resistance, Burial
- Flammability / Reaction to Fire: UL 1685 FT4 loading, FT4, T-29-520, IEEE 1202 FT4
- NEC / UL Compliance: Article 725, Article 727, Article 800
- AWM Compliance: AWM 2464
- CEC / C(UL) Compliance: CMG
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.421 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
