Belden 9552 0601000 High Perform Instr, 2 Pr #18 Str TC, PVC Ins E2, OS, PVC Jkt, PLTC
High Performance Instrumentation, 2 Pair 18AWG (19x30) Tinned Copper, PVC Insulation E2 Color Code, Overall Beldfoil® Shield, PVC Outer Jacket, PLTC
Ordering Details
- Manufacturer Part Number: 9552 0601000
- Color: Chrome
- UPC/EAN: 612825255772
- Manufacturer Footnote: C

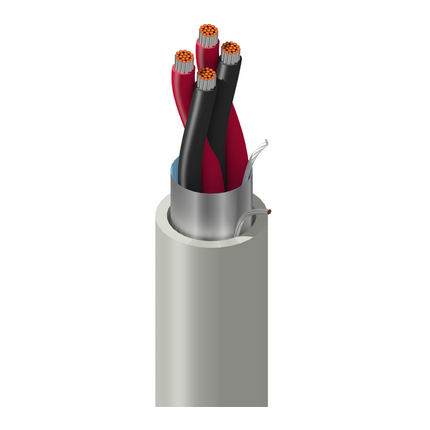

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Instrumentation, Sensors, Valves, Positioners, 4-20mA, 0-10V
Construction Details
- Element: Pair(s); No. of Elements: 2; Size: 18 AWG; Stranding: 19x30; Material: TC - Tinned Copper
- Element: Pair(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.019 in (0.48 mm); Nom. Insulation Diameter: 0.082 in (2.1 mm); Color Code: ICEA chart E2
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 18 AWG (7x26) TC
- Separator: PP - Polypropylene Tape; Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.053 in (1.3 mm); Nom. Diameter: 0.420 in (10.7 mm); Ripcord: Yes
- Overall Cable Diameter (Nominal): 0.420 in (10.7 mm)
Electrical Characteristics
- Element: Pair(s); Nom. Conductor DCR: 7.2 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 35 pF/ft (110 pF/m); Nom. Capacitance Cond-to-Shield: 54 pF/ft (180 pF/m); Nom. Inductance: 0.17 µH/ft (0.56 µH/m); Max. Current: 4 Amps per Conductor at 25ºC
- Nom Outer Shield DCR: 5.11 Ohm/1000ft (16.8 Ohm/km)
- UL Voltage Rating: 300 V (PLTC, CMG)
Mechanical Characteristics
- UL Temperature: 105°C; Operating: -30°C to +105°C
- Temperature Table Notes: AWM 80°C
- Stationary Min.: 4.2 in (110 mm); Installation Min.: 4.2 in (110 mm)
- Max. Pull Tension: 121 lbs (54.9 kg)
- Bulk Cable Weight: 73 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Burial
- Flammability / Reaction to Fire: UL 1685 UL Loading, FT4, T-29-520, IEEE 1202
- CPR Compliance: CPR Euroclass: Eca; CPR UKCA Class: Eca
- NEC / UL Compliance: Article 725, Article 727, Article 800, CMG, ITC, PLTC
- AWM Compliance: AWM 2464
- CEC / C(UL) Compliance: CMG
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.605 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP., Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.
