Belden 9546 0601000 RS232, #24-50c, SR-PVC, O/A Foil, PVC Jkt, CMG - Chrome, 1,000 ft Reel

$31,049.99
SKU:
9546 0601000
Shipping:
Calculated at Checkout
Color:
Chrome
Length:
1,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
9546
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

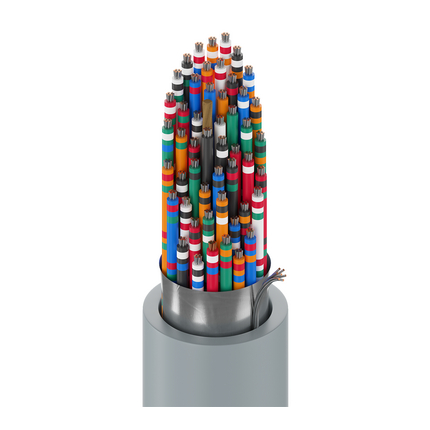

Belden 9546 0601000 RS232, #24-50c, SR-PVC, O/A Foil, PVC Jkt, CMG

Computer EIA RS-232 Cable, 24 AWG stranded (7x32) tinned copper conductors, semi-rigid PVC insulation, overall Beldfoil® shield (100% coverage), 24 AWG stranded tinned copper drain wire, PVC jacket.

Ordering Details

  • Manufacturer Part Number: 9546 0601000
  • Color: Chrome
  • Length: 1,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825255727
  • Manufacturer Footnote: C

Supplied as one 1,000 ft Reel.

Product Overview

  • Suitable Applications: RS-232 Applications; Computer Communications; Low Voltage Analog Signals (4-20mA, 0-10V, ...); Low Voltage Digital Control (24V, …); Line Level Audio; Panel Wiring

Construction Details

  • Element: Conductor(s); No. of Elements: 50; Size: 24 AWG; Stranding: 7x32; Material: TC - Tinned Copper
  • Element: Conductor(s); Material: SR-PVC - Polyvinyl Chloride (Semi-Rigid); Nom. Thickness: 0.011 in (0.28 mm); Nom. Insulation Diameter: 0.044 in (1.1 mm); Color Code: Black, White, Red, Green, Orange, Blue, White/Black Stripe, Red/Black Stripe, Green/Black Stripe, Orange/Black Stripe, Blue/Black Stripe, Black/White Stripe, Red/White Stripe, Green/White Stripe, Blue/White Stripe, Black/Red Stripe, White/Red Stripe, Orange/Red Stripe, Blue/Red Stripe, Red/Green Stripe, Orange/Green Stripe, Black/White/Red Stripes, White/Black/Red Stripes, Red/Black/White Stripes, Green/Black/White Stripes, Orange/Black/White Stripes, Blue/Black/White Stripes, Black/Red/Green Stripes, White/Red/Green Stripes, Red/Black/Green Stripes, Green/Black/Orange Stripes, Orange/Black/Green Stripes, Blue/White/Orange Stripes, Black/White/Orange Stripes, White/Red/Orange Stripes, Orange/White/Blue Stripes, White/Red/Blue Stripes, Black/White/Green Stripes, White/Black/Green Stripes, Red/White/Green Stripes, Green/White/Blue Stripes, Orange/Red/Green Stripes, Blue/Red/Green Stripes, Black/White/Blue Stripes, White/Black/Blue Stripes, Red/White/Blue Stripes, Green/Orange/Red Stripes, Orange/Red/Blue Stripes, Blue/Orange/Red Stripes, Black/Orange/Red Stripes
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 24 AWG (7x32) TC
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.045 in (1.1 mm); Nom. Diameter: 0.490 in (12.4 mm)
  • Overall Cable Diameter (Nominal): 0.490 in (12.4 mm)

Electrical Characteristics

  • Element: Conductor(s); Nom. Conductor DCR: 25 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 30 pF/ft (98 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 55 pF/ft (180 pF/m); Max. Current: 1.1 Amps per Conductor at 25ºC
  • Nom Outer Shield DCR: 18 Ohm/1000ft (59 Ohm/km)
  • UL Voltage Rating: 300 V (CMG), 300 V (UL AWM 2464)

Mechanical Characteristics

  • UL Temperature: 60°C (UL CMG);80°C (UL AWM 2464); Operating: -30°C to +80°C
  • Stationary Min.: 5.9 in (150 mm); Installation Min.: 5.9 in (150 mm)
  • Max. Pull Tension: 281 lbs (127 kg)
  • Bulk Cable Weight: 149 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
  • Sustainability: CA Prop 65
  • Flammability / Reaction to Fire: UL 1685 FT4 Loading, FT4, IEC 60332-1-2
  • CPR Compliance: CPR Euroclass: Eca
  • NEC / UL Compliance: Article 800, CMG
  • AWM Compliance: AWM 2464
  • CEC / C(UL) Compliance: CMG
  • European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.529 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP.

Resources

Belden 9546 Product Information
