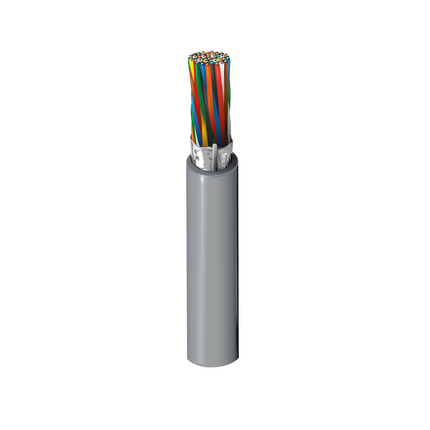

Belden 9525 060100 RS232, #24-25pr, SR-PVC, O/A Foil, PVC Jkt, CMG, 75Ω
Computer EIA RS-232 Cable, 24 AWG stranded (7x32) tinned copper conductors, semi-rigid PVC insulation, 25 twisted pairs, overall Beldfoil® shield (100% coverage), 24 AWG stranded tinned copper drain wire (continued), PVC jacket.
Ordering Details
- Manufacturer Part Number: 9525 060100
- Color: Chrome
- Length: 100 ft
- Put-Up: Reel
- UPC/EAN: 612825254942
- Manufacturer Footnote: C
Supplied as one 100 ft Reel.
Product Overview
- Suitable Applications: RS-232 Applications; Computer Communications; Low Voltage Analog Signals (4-20ma, 0-10v, ...); Low Voltage Digital Control (24v, …); Line Level Audio; Panel Wiring
Construction Details
- Element: Pair(s); No. of Elements: 25; Size: 24 AWG; Stranding: 7x32; Material: TC - Tinned Copper
- Element: Pair(s); Material: SR-PVC - Polyvinyl Chloride (Semi-Rigid); Nom. Thickness: 0.011 in (0.28 mm); Nom. Insulation Diameter: 0.044 in (1.1 mm); Color Code: Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown, Black & Orange, Red & White, Red & Green, Red & Blue, Red & Yellow, Red & Brown, Red & Orange, Green & White, Green & Blue, Green & Yellow, Green & Brown, Green & Orange, White & Blue, White & Yellow, White & Brown, White & Orange, Blue & Yellow, Blue & Brown, Blue & Orange
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 24 AWG (7x32) TC
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.045 in (1.1 mm); Nom. Diameter: 0.503 in (12.8 mm)
- Overall Cable Diameter (Nominal): 0.503 in (12.8 mm)
Electrical Characteristics
- Element: Pair(s); Nom. Conductor DCR: 28.8 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 30 pF/ft (98 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 50 pF/ft (160 pF/m); Nom. Velocity of Prop.: 60%; Max. Current: 2.2 Amps per Conductor at 25ºC
- Nom Outer Shield DCR: 14.43 Ohm/1000ft (47.34 Ohm/km)
- UL Voltage Rating: 300 V (CMG), 300 V (UL AWM 2464)
Mechanical Characteristics
- UL Temperature: 80°C; Operating: -30°C to +80°C
- Stationary Min.: 5.0 in (130 mm); Installation Min.: 5.0 in (130 mm)
- Max. Pull Tension: 281 lbs (127 kg)
- Bulk Cable Weight: 145 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor
- Flammability / Reaction to Fire: UL 1685 FT4 Loading, FT4
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: Article 800, CMG
- AWM Compliance: AWM 2464, AWM I/II A
- CEC / C(UL) Compliance: CMG
- European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.482 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
