Description
Belden 9521 060500 High Perform Instr, 11 Pr #22 Str TC, PVC Ins E2, OS, PVC Jkt, PLTC
High Performance Instrumentation, 11 Pair 22AWG (7x30) Tinned Copper, PVC Insulation E2 Color Code, Overall Beldfoil® Shield, PVC Outer Jacket, PLTC
Ordering Details
- Manufacturer Part Number: 9521 060500
- Color: Chrome
- UPC/EAN: 612825254911
- Manufacturer Footnote: C

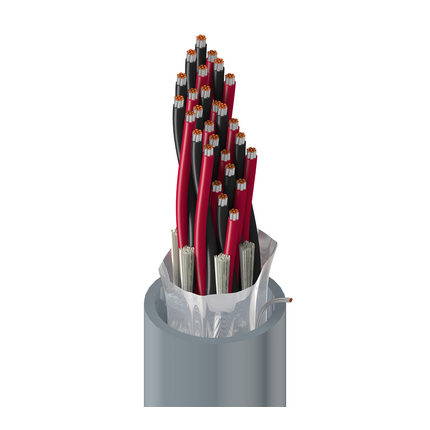

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Industrial Control, Raceways Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, ...),low voltage digital control (24v, …), encoders, control circuits, distributed control
Construction Details
- Element: Pair(s); No. of Elements: 11; Size: 22 AWG; Stranding: 7x30; Material: TC - Tinned Copper
- Element: Pair(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.017 in (0.43 mm); Nom. Insulation Diameter: 0.062 in (1.6 mm); Color Code: Black & Red and Numbered
- Material: No Shield
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 22 AWG (7x30) TC
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.053 in (1.3 mm); Nom. Diameter: 0.506 in; Ripcord: Yes
- Overall Cable Diameter (Nominal): 0.506 in
Electrical Characteristics
- Nom. Conductor DCR: 18.61 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 26 pF/ft (85 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 45 pF/ft (150 pF/m); Nom. Inductance: 0.21 µH/ft (0.69 µH/m); Max. Current: 2.4 Amps per Conductor at 25ºC
- Nom Outer Shield DCR: 15 Ohm/1000ft (49 Ohm/km)
- UL Voltage Rating: 300 V (AWM 2464)
Mechanical Characteristics
- UL Temperature: 105°C; Operating: -30°C To +105°C
- Stationary Min.: 5.06 in (129 mm); Installation Min.: 5.06 in
- Max. Pull Tension: 209 lbs (94.8 kg)
- Bulk Cable Weight: 125lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor, Outdoor, Sunlight Resistance
- Flammability / Reaction to Fire: UL1685 FT4 Loading, FT4, T-29-520, IEEE 1202 FT4
- NEC / UL Compliance: Article 725, Article 727, Article 800
- AWM Compliance: AWM 2464
- CEC / C(UL) Compliance: CMG
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.417 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
