Belden 9495 060500 High Perform Instr, 1 Tri #14 Str TC, PVC Ins E1, PVC Jkt, PLTC
High Performance Instrumentation, 1 Triad 14AWG (42x30) Tinned Copper, PVC Insulation E1 Color Code, PVC Outer Jacket, PLTC
Ordering Details
- Manufacturer Part Number: 9495 060500
- Color: Chrome
- UPC/EAN: 612825254010
- Manufacturer Footnote: C

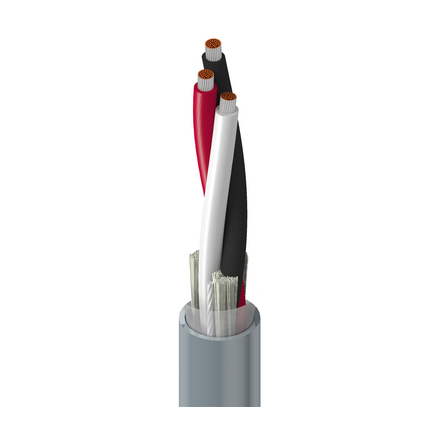

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Instrumentation, Sensors, Valves, Positioners, RTD, 4-20mA, 0-10V
Construction Details
- Element: Triad(s); No. of Elements: 1; Size: 14 AWG; Stranding: 42x30; Material: TC - Tinned Copper
- Element: Triad(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.022 in (0.56 mm); Nom. Insulation Diameter: 0.119 in (3.02 mm); Color Code: Black , White , Red
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.042 in (1.1 mm); Nom. Diameter: 0.355 in (9.02 mm); Ripcord: Yes
- Overall Cable Diameter (Nominal): 0.355 in (9.02 mm)
Electrical Characteristics
- Element: Triad(s); Nom. Conductor DCR: 2.8 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 27 pF/ft (89 pF/m); Nom. Inductance: 0.18 µH/ft (0.59 µH/m); Max. Current: 8 Amps per conductor at 25°C
- UL Voltage Rating: 300 V (PLTC, CMG)
Mechanical Characteristics
- UL Temperature: 105°C; Operating: -30°C to +105°C
- Temperature Table Notes: AWM 80°C
- Stationary Min.: 3.6 in (91 mm); Installation Min.: 3.6 in (91 mm)
- Max. Pull Tension: 160 lbs (73 kg)
- Bulk Cable Weight: 82 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Burial
- Flammability / Reaction to Fire: UL 1685 UL Loading, T-29-520, IEEE 1202, FT4
- NEC / UL Compliance: Article 725, Article 727, Article 800, CMG, ITC, PLTC
- AWM Compliance: AWM 2464
- CEC / C(UL) Compliance: CMG
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.591 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP., Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.
