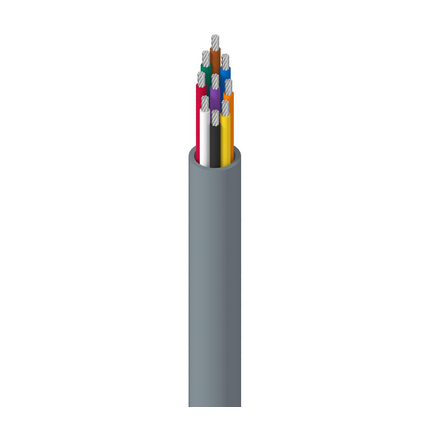

Belden 9455 0601000 Electronic, 9 C #20 Str TC, PVC Ins, PVC Jkt, CMG
Electronic, 9 Conductor 20AWG (7x28) Tinned Copper, PVC Insulation, PVC Outer Jacket, CMG
Ordering Details
- Manufacturer Part Number: 9455 0601000
- Color: Chrome
- UPC/EAN: 612825253228
- Manufacturer Footnote: C
Product Overview
- Suitable Applications: low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; voice communications; panel wiring
Construction Details
- Element: Conductor(s); No. of Elements: 9; Size: 20 AWG; Stranding: 7x28; Material: TC - Tinned Copper
- Element: Conductor(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.015 in (0.38 mm); Nom. Insulation Diameter: 0.065 in (1.7 mm); Color Code: Black, White, Red, Green, Brown, Blue, Orange, Yellow, Purple
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.035 in (0.89 mm); Nom. Diameter: 0.317 in (8.05 mm)
- Overall Cable Diameter (Nominal): 0.317 in (8.05 mm)
Electrical Characteristics
- Element: Conductor(s); Nom. Conductor DCR: 10.7 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 27 pF/ft (89 pF/m); Max. Current: 2.8 Amps per Conductor at 25ºC
- UL Voltage Rating: 300 V (CMG), 300 V (UL AWM 2464)
Mechanical Characteristics
- UL Temperature: 80°C; Operating: -20°C to +80°C
- Stationary Min.: 3.2 in (81 mm); Installation Min.: 3.2 in (81 mm)
- Max. Pull Tension: 113 lbs (51.3 kg)
- Bulk Cable Weight: 60 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
- Flammability / Reaction to Fire: UL 1685 FT4 Loading, FT4, IEC 60332-1-2
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: Article 800, CMG
- AWM Compliance: AWM 2464
- CEC / C(UL) Compliance: CMG
- European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.510 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
