Belden 9451PS4 0101000 Audio Snake Cable, 4 Pair 22 AWG, TC, Indiv. Shielded, CMP - Black, 1,000 ft Reel

$4,501.99
SKU:
9451PS4 0101000
Shipping:
Calculated at Checkout
Color:
Black
Length:
1,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
9451PS4
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 9451PS4 0101000 Audio Snake Cable, 4 Pair 22 AWG, TC, Indiv. Shielded, CMP

Audio Snake Cable, 4 Pair 22 AWG tinned copper pairs, FEP insulation, drain, individually shielded with Beldfoil® bonded to numbered PVC jackets so both strip simulteaneously, Plenum Flamarrest® jackets, Banana Peel construction

Ordering Details

  • Manufacturer Part Number: 9451PS4 0101000
  • Color: Black
  • Length: 1,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825253105

Supplied as one 1,000 ft Reel.

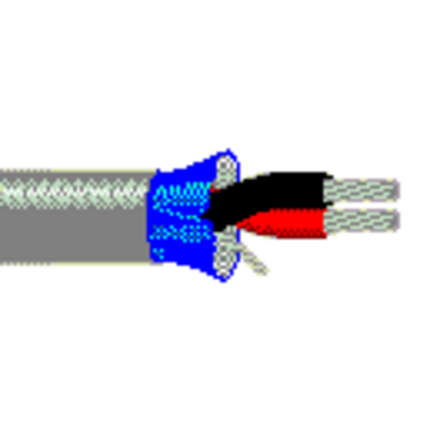

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: Recording Studio, Radio Broadcast, Sports Stadium, Nurse Call

Construction Details

  • Size: 22; Stranding: 7x30; Material: TC - Tinned Copper; No. of Pairs: 4
  • Material: FEP - Fluorinated Ethylene Propylene; Nom. Insulation Diameter: 0.044 in (1.1 mm); Color Code: Black & Red
  • Element: Individual; Material: PVC - Polyvinyl Chloride; Nom. Diameter: .127 in (3.23 mm); Color: Black
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%
  • Material: Banana Peel (No Overall Jacket); Material Trade Name: Flamarrest®
  • Overall Cable Diameter (Nominal): .306 in (7.77 mm)

Electrical Characteristics

  • Nom. Velocity of Prop.: 69%
  • UL Voltage Rating: 300 V RMS

Mechanical Characteristics

  • UL Temperature: 60°C; Operating: -20°C To +75°C
  • Max. Pull Tension: 108 lbs (49.0 kg)
  • Bulk Cable Weight: 68 lbs/1000ft (100 kg/km)

Standards and Compliance

  • Environmental Suitability: Indoor - Plenum, Indoor
  • Flammability / Reaction to Fire: NFPA 262
  • NEC / UL Compliance: CMP
  • CEC / C(UL) Compliance: CMP
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

  • Notes: The jacket and shield are bonded so both can be removed on automatic stripping equipment. Drain wire is inside foil shield.

History

  • Update and Revision: Revision Number: 0.517 Revision Date: 09-07-2025
