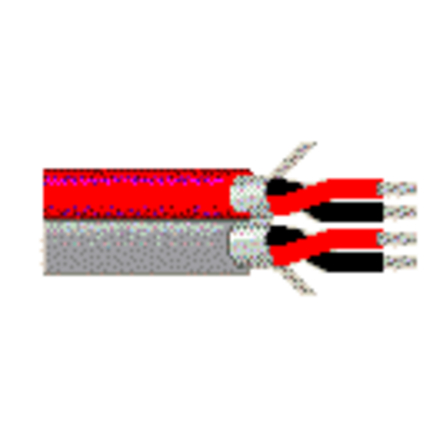

Belden 9451D 053U1000 Line Level Audio Cable, 2 Parallel Pr #22 Str TC, O/A Foil, PVC Jkt, CMR - Red and Gray Pair, 1,000 ft UnReel

$1,152.99
SKU:
9451D 053U1000
Shipping:
Calculated at Checkout
Color:
Red and Gray Pair
Length:
1,000 ft
Put-Up:
UnReel
Manufacturer Status:
Active
Product Family:
9451D
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 9451D 053U1000 Line Level Audio Cable, 2 Parallel Pr #22 Str TC, O/A Foil, PVC Jkt, CMR

Line Level Audio Cable, 2 Parallel Pair 22 AWG (7 x 30) Tinned Copper, PP Insulation, Overall Beldfoil® Shield, PVC Jacket, CMR

Ordering Details

  • Manufacturer Part Number: 9451D 053U1000
  • Color: Red and Gray Pair
  • Length: 1,000 ft
  • Put-Up: UnReel
  • UPC/EAN: 612825252818

Supplied as one 1,000 ft UnReel.

Product Overview

  • Suitable Applications: Line level audio; Low voltage analog signals and control

Construction Details

  • Element: Pair(s); No. of Elements: 2; Size: 22 AWG; Stranding: 7x30; Material: TC - Tinned Copper
  • Element: Pair(s); Material: PP - Polypropylene; Nom. Thickness: 0.009 in (0.23 mm); Nom. Insulation Diameter: 0.046 in (1.2 mm); Color Code: Black & Red
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 22 AWG (7x30) TC
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.020 in (0.51 mm); Nom. Diameter: 0.135 in (3.43 mm)
  • Outer Jacket1 Table Notes: Jacket and shield are bonded so both can be removed on automatic stripping equipment. Drain wire is inside foil shield. For cross-connect use with 1814R (et. al.) Snake Cables.
  • Overall Cable Diameter (Nominal): 0.270 in (6.86 mm)

Electrical Characteristics

  • Element: Pair(s); Nom. Conductor DCR: 18.2 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 34 pF/ft (110 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 67 pF/ft (220 pF/m); Nom. Characteristic Impedence: 45 Ohm; Nom. Delay: 1.5 ns/ft; Nom. Inductance: 0.16 µH/ft (0.52 µH/m); Nom. Velocity of Prop.: 66%; Max. Current: 2.8 Amps per Conductor at 25ºC
  • Nom Outer Shield DCR: 13.93 Ohm/1000ft (45.70 Ohm/km)
  • UL Voltage Rating: 300 V (CMR)

Mechanical Characteristics

  • UL Temperature: 105°C; Operating: -30°C to +105°C
  • Stationary Min.: 1.4 in (36 mm); Installation Min.: 1.4 in (36 mm)
  • Max. Pull Tension: 45.5 lbs (20.6 kg)
  • Bulk Cable Weight: 27 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor - Riser, Indoor
  • Flammability / Reaction to Fire: UL 1666 Riser, IEC 60332-1-2, FT4
  • CPR Compliance: CPR Euroclass: Eca
  • NEC / UL Compliance: Article 800, CMR
  • CEC / C(UL) Compliance: CMR
  • European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)
  • Plenum Number: 9451DP

History

  • Update and Revision: Revision Number: 0.524 Revision Date: 09-07-2025
