Description

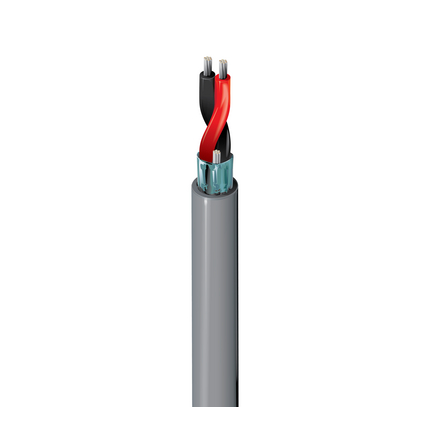

Belden 9451 0105000 Audio Cable, 1 Pair 22 AWG TC, Shielded, Riser
Audio Cable, 1 Pair 22 AWG stranded (7x30) tinned copper pair, polypropylene insulation, Beldfoil® shield, drain, Riser, PVC jacket.
Ordering Details
- Manufacturer Part Number: 9451 0105000
- Color: Black
- Length: 5,000 ft
- Put-Up: Reel
- UPC/EAN: 612825252764
- Manufacturer Footnote: C N
Supplied as one 5,000 ft Reel.
Product Overview
- Suitable Applications: Automatic Stripping Equipment; Low Voltage analog Signals (4-20mA, 0-10V, ...); Low Voltage Digital Control (24V, …); Line Level audio; Computer Communication; Panel Wiring
Construction Details
- Element: Pair(s); No. of Elements: 1; Size: 22 AWG; Stranding: 7x30; Material: TC - Tinned Copper
- Element: Pair(s); Material: PP - Polypropylene; Nom. Thickness: 0.009 in (0.23 mm); Nom. Insulation Diameter: 0.046 in (1.2 mm); Color Code: Black & Red
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 22 AWG (7x30) TC; Notes: Jacket and shield are bonded so both can be removed on automatic stripping equipment. Drain wire is inside foil shield.
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.020 in (0.51 mm); Nom. Diameter: 0.135 in (3.43 mm)
Electrical Characteristics
- Element: Pair(s); Nom. Conductor DCR: 14.1 Ohm/1000ft (46.3 Ohm/km); Nom. Capacitance Cond-to-Cond: 35 pF/ft (110 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 67 pF/ft (220 pF/m); Nom. Characteristic Impedence: 45 Ohm; Nom. Delay: 1.54 ns/ft; Nom. Inductance: 0.17 µH/ft (0.56 µH/m); Nom. Velocity of Prop.: 66%; Max. Current: 2.9 Amps per Conductor at 25ºC
- Nom Outer Shield DCR: 14.3 Ohm/1000ft (46.9 Ohm/km)
- UL Voltage Rating: 300 V (CMR)
Mechanical Characteristics
- UL Temperature: 60°C; Operating: -20°C to +75°C
- Stationary Min.: 1.4 in (36 mm); Installation Min.: 1.4 in (36 mm)
- Max. Pull Tension: 27 lbs (12 kg)
- Bulk Cable Weight: 14 lbs/1000ft (21 kg/km)
Standards and Compliance
- Environmental Suitability: Indoor - Riser, Indoor
- Sustainability: CA Prop 65
- Flammability / Reaction to Fire: UL 1666 Riser, IEEE 1202 FT4, IEC 60332-1-2
- CPR Compliance: CPR Euroclass: Eca; CPR UKCA Class: Eca
- NEC / UL Compliance: Article 800, CMR
- CEC / C(UL) Compliance: CMR
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
- Plenum Number: 9451P
Product Notes
- Notes: For cross-connect, use with 1814R (et. al.) Snake Cables.
History
- Update and Revision: Revision Number: 0.688 Revision Date: 02-20-2026
- Footnote: C - CRATE REEL PUT-UP., N - FINAL PUT-UP LENGTH MAY VARY -0% TO +10% FROM LENGTH SHOWN.
