Belden 9434 0601000 Electronic, 50 C #22 Str TC, PVC Ins, PVC Jkt, CMG - Chrome

$25,766.99
SKU:
9434 0601000
Shipping:
Calculated at Checkout
Color:
Chrome
Manufacturer Status:
Active
Product Family:
9434
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 9434 0601000 Electronic, 50 C #22 Str TC, PVC Ins, PVC Jkt, CMG

Electronic, 50 Conductor 22AWG (7x30) Tinned Copper, PVC Insulation, PVC Outer Jacket, CMG

Ordering Details

  • Manufacturer Part Number: 9434 0601000
  • Color: Chrome
  • UPC/EAN: 612825245933
  • Manufacturer Footnote: C

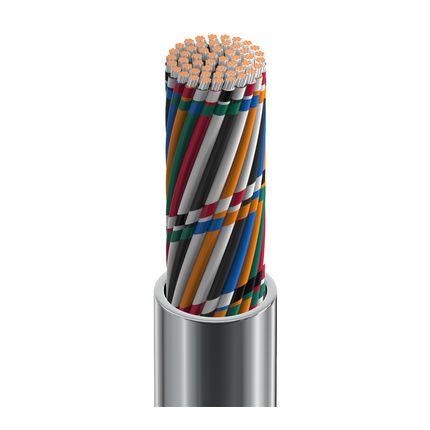

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; voice communications; panel wiring

Construction Details

  • Element: Conductor(s); No. of Elements: 50; Size: 22 AWG; Stranding: 7x30; Material: TC - Tinned Copper
  • Element: Conductor(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.011 in (0.28 mm); Nom. Insulation Diameter: 0.050 in (1.3 mm); Color Code: Black, White, Red, Green, Orange, Blue, White/Black Stripe, Red/Black Stripe, Green/Black Stripe, Orange/Black Stripe, Blue/Black Stripe, Black/White Stripe, Red/White Stripe, Green/White Stripe, Blue/White Stripe, Black/Red Stripe, White/Red Stripe, Orange/Red Stripe, Blue/Red Stripe, Red/Green Stripe, Orange/Green Stripe, Black/White/Red Stripes, White/Black/Red Stripes, Red/Black/White Stripes, Green/Black/White Stripes, Orange/Black/White Stripes, Blue/Black/White Stripes, Black/Red/Green Stripes, White/Red/Green Stripes, Red/Black/Green Stripes, Green/Black/Orange Stripes, Orange/Black/Green Stripes, Blue/White/Orange Stripes, Black/White/Orange Stripes, White/Red/Orange Stripes, Orange/White/Blue Stripes, White/Red/Blue Stripes, Black/White/Green Stripes, White/Black/Green Stripes, Red/White/Green Stripes, Green/White/Blue Stripes, Orange/Red/Green Stripes, Blue/Red/Green Stripes, Black/White/Blue Stripes, White/Black/Blue Stripes, Red/White/Blue Stripes, Green/Orange/Red Stripes, Orange/Red/Blue Stripes, Blue/Orange/Red Stripes, Black/Orange/Red Stripes
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.045 in (1.1 mm); Nom. Diameter: 0.500 in (12.7 mm)
  • Overall Cable Diameter (Nominal): 0.500 in (12.7 mm)

Electrical Characteristics

  • Element: Conductor(s); Nom. Conductor DCR: 15.6 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 34 pF/ft (110 pF/m); Nom. Inductance: 0.17 µH/ft (0.56 µH/m); Max. Current: 1.2 Amps per Conductor at 25ºC
  • UL Voltage Rating: 300 V (CMG), 150 V (UL AWM 2576)

Mechanical Characteristics

  • UL Temperature: 80°C; Operating: -20°C to +80°C
  • Stationary Min.: 5.0 in (130 mm); Installation Min.: 5.0 in (130 mm)
  • Max. Pull Tension: 455 lbs (206 kg)
  • Bulk Cable Weight: 187 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
  • Flammability / Reaction to Fire: UL 1685 FT4 Loading, FT4
  • CPR Compliance: CPR Euroclass: Eca
  • NEC / UL Compliance: Article 800, CMG
  • AWM Compliance: AWM 2576
  • CEC / C(UL) Compliance: CMG
  • European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.506 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP.

Resources

Belden 9434 Product Information
