Description
Belden 9429 010500 Portable Cordage, 20 C #16 Str BC, EPDM Ins, CPE Jkt, UL Type SO
Portable Cordage, 20 Conductor 16AWG (65x34) Bare Copper, EPDM Insulation, CPE Outer Jacket, UL Type SO
Ordering Details
- Manufacturer Part Number: 9429 010500
- Color: Black
- UPC/EAN: 612825244998
- Manufacturer Footnote: C

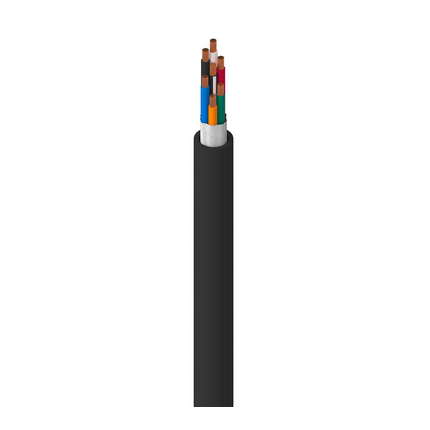

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: extra hard service cordage; oil resistant applications; to power tools and appliances
Construction Details
- Element: Conductor(s); No. of Elements: 20; Size: 16 AWG; Stranding: 65x34; Material: BC - Bare Copper
- Element: Conductor(s); Material: EPDM - Ethylene Propylene Diene Monomer; Nom. Thickness: 0.033 in (0.84 mm); Nom. Insulation Diameter: 0.123 in (3.12 mm); Color Code: Black, White, Red, Green, Orange, Blue, White/Black, Red/Black, Green/Black, Orange/Black, Blue/Black, Black/White, Red/White, Green/White, Blue/White, Black/Red, White/Red, Orange/Red, Blue/Red, Red/Green
- Material: No Shield
- Separator: Paper Tape; Material: CPE - Chlorinated Polyethylene (Thermoset); Nom. Thickness: 0.1 in (2.5 mm); Nom. Diameter: 0.862 in; Ripcord: Yes
- Overall Cable Diameter (Nominal): 0.862 in
Electrical Characteristics
- Nom. Conductor DCR: 4.4 Ohm/1000ft; Max. Current: 6 Amps per Conductor at 25ºC
- UL Voltage Rating: 600 V
Mechanical Characteristics
- UL Temperature: 60°C; Operating: -20°C To +60°C
- Stationary Min.: 8.62 in (219 mm); Installation Min.: 8.62 in
- Max. Pull Tension: 650 lbs (290 kg)
- Bulk Cable Weight: 445 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor, Oil Resistance
- NEC / UL Compliance: Article 400, SO
- AWM Compliance: SO
- CEC / C(UL) Compliance: LL7874
- European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.355 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
