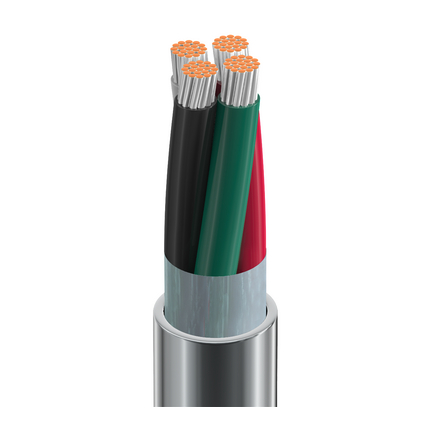

Belden 9418 060100 Electronic, 4 C #18 Str TC,SRPVC Ins, OS, PVC Jkt, CMG
Electronic, 4 Conductor 18AWG (19x30) Tinned Copper, SRPVC Insulation, Overall Beldfoil® Shield, PVC Outer Jacket, CMG
Ordering Details
- Manufacturer Part Number: 9418 060100
- Color: Chrome
- UPC/EAN: 612825240631
Product Overview
- Suitable Applications: low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; voice communications; panel wiring
Construction Details
- Element: Conductor(s); No. of Elements: 4; Size: 18 AWG; Stranding: 19x30; Material: TC - Tinned Copper
- Element: Conductor(s); Material: SR-PVC - Polyvinyl Chloride (Semi-Rigid); Nom. Thickness: 0.011 in (0.28 mm); Nom. Insulation Diameter: 0.066 in (1.7 mm); Color Code: Red, Green, Black, White
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 20 AWG (19x32) TC
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.035 in (0.89 mm); Nom. Diameter: 0.245 in (6.22 mm)
- Overall Cable Diameter (Nominal): 0.245 in (6.22 mm)
Electrical Characteristics
- Element: Conductor(s); Nom. Conductor DCR: 6.5 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 40 pF/ft (130 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 72 pF/ft (240 pF/m); Max. Current: 5 Amps per Conductor at 25ºC
- Nom Outer Shield DCR: 8.5 Ohm/1000ft (28 Ohm/km)
- UL Voltage Rating: 300 V (CMG), 300 V (UL AWM 2464)
Mechanical Characteristics
- UL Temperature: 80°C; Operating: -20°C to +80°C
- Stationary Min.: 2.5 in (64 mm); Installation Min.: 2.5 in (64 mm)
- Max. Pull Tension: 113 lbs (51.3 kg)
- Bulk Cable Weight: 42 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
- Sustainability: CA Prop 65
- Flammability / Reaction to Fire: UL 1685 FT4 Loading, FT4, IEC 60332-1-2
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: Article 800, CMG
- AWM Compliance: AWM 2464
- CEC / C(UL) Compliance: CMG
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- Plenum Number: 89418 or 82418
History
- Update and Revision: Revision Number: 0.546 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP., Y - FINAL PUT-UP LENGTH MAY VAR -10% TO +20% FROM LENGTH SHOWN. MAY CONTAIN 2 PIECES. MINIMUM LENGTH OF ANY ONE PIECE IS 1500'., Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.
