Belden 9408 0602500 High Perform Instr, 1 Pr #20 Str TC, PVC Ins E2, PVC Jkt, PLTC - Chrome

$4,871.99
SKU:
9408 0602500
Shipping:
Calculated at Checkout
Color:
Chrome
Manufacturer Status:
Active
Product Family:
9408
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 9408 0602500 High Perform Instr, 1 Pr #20 Str TC, PVC Ins E2, PVC Jkt, PLTC

High Performance Instrumentation, 1 Pair 20AWG (19x32) Tinned Copper, PVC Insulation E2 Color Code, PVC Outer Jacket, PLTC

Ordering Details

  • Manufacturer Part Number: 9408 0602500
  • Color: Chrome
  • UPC/EAN: 612825240129
  • Manufacturer Footnote: Z

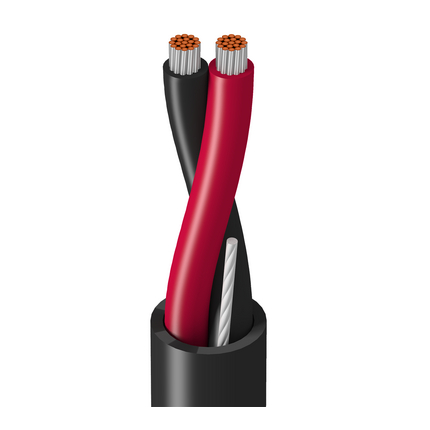

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: Instrumentation, Sensors, Valves, Positioners, 4-20mA, 0-10V

Construction Details

  • Element: Pair(s); No. of Elements: 1; Size: 20 AWG; Stranding: 19x32; Material: TC - Tinned Copper
  • Element: Pair(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.018 in (0.46 mm); Nom. Insulation Diameter: 0.072 in (1.8 mm); Color Code: Black & Red
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.037 in (0.94 mm); Nom. Diameter: 0.218 in (5.54 mm); Ripcord: Yes
  • Overall Cable Diameter (Nominal): 0.218 in (5.54 mm)

Electrical Characteristics

  • Element: Pair(s); Nom. Conductor DCR: 11.3 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 30 pF/ft (98 pF/m); Nom. Capacitance Cond-to-Shield: 55 pF/ft (180 pF/m); Nom. Inductance: 0.19 µH/ft (0.62 µH/m); Max. Current: 3.8 Amps per Conductor at 25ºC
  • UL Voltage Rating: 300 V (PLTC, CMG)

Mechanical Characteristics

  • UL Temperature: 105°C; Operating: -30°C to +105°C
  • Temperature Table Notes: AWM 80°C
  • Stationary Min.: 2.2 in (56 mm); Installation Min.: 2.2 in (56 mm)
  • Max. Pull Tension: 30 lbs (14 kg)
  • Bulk Cable Weight: 21 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance
  • Flammability / Reaction to Fire: UL 1685 UL Loading, FT4, T-29-520, IEEE 1202
  • NEC / UL Compliance: Article 725, Article 727, Article 800, CMG, ITC, PLTC
  • AWM Compliance: AWM 2464
  • CEC / C(UL) Compliance: CMG
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.606 Revision Date: 09-07-2025
  • Footnote: Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN., C - CRATE REEL PUT-UP.

Resources

Belden 9408 Product Information
