Belden 9392 0601000 High Perform Instr, 15 Pr #18 Str TC, PVC Ins E2, IS, PVC Jkt, PLTC - Chrome

$47,950.99
SKU:
9392 0601000
Shipping:
Calculated at Checkout
Color:
Chrome
Manufacturer Status:
Active
Product Family:
9392
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 9392 0601000 High Perform Instr, 15 Pr #18 Str TC, PVC Ins E2, IS, PVC Jkt, PLTC

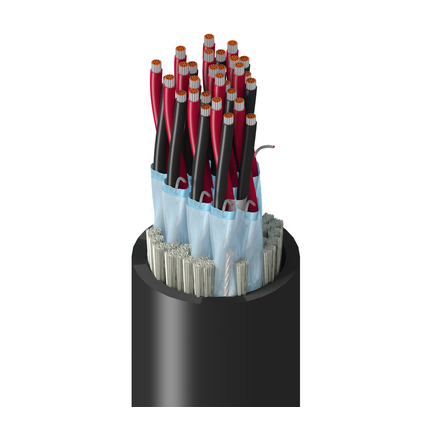

High Performance Instrumentation, 15 Pair 18AWG (19x30) Tinned Copper, PVC Insulation E2 Color Code, Individual Beldfoil® Shield, PVC Outer Jacket, PLTC

Ordering Details

  • Manufacturer Part Number: 9392 0601000
  • Color: Chrome
  • UPC/EAN: 612825239871
  • Manufacturer Footnote: C

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: Instrumentation, Sensors, Valves, Positioners, 4-20mA, 0-10V

Construction Details

  • Element: Pair(s); No. of Elements: 15; Size: 18 AWG; Stranding: 19x30; Material: TC - Tinned Copper
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.016 in (0.41 mm); Nom. Insulation Diameter: 0.078 in (2.0 mm); Color Code: Black, Red and Numbered
  • Element: Each Pair; Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 20 AWG (19x32) TC
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.063 in (1.6 mm); Nom. Diameter: 0.803 in; Ripcord: Yes

Electrical Characteristics

  • Nom. Conductor DCR: 7.19 Ohm/1000ft; Nom. Inner Shield DCR: 0.5 Ohm/1000ft (1.6 Ohm/km); Nom. Capacitance Cond-to-Cond: 61 pF/ft (200 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 112 pF/ft (367 pF/m); Nom. Inductance: 0.18 µH/ft (0.59 µH/m); Max. Current: 7 Amps per Conductor at 25ºC
  • UL Voltage Rating: 300 V (PLTC)

Mechanical Characteristics

  • UL Temperature: 105°C; Operating: -30°C To +105°C
  • Max. Pull Tension: 966 lbs (438 kg)
  • Bulk Cable Weight: 368 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor, Outdoor, Sunlight Resistance, Burial
  • Flammability / Reaction to Fire: UL 1685 FT4 loading, FT4, IEEE 1202 FT4
  • NEC / UL Compliance: Article 725, Article 727, Article 800
  • AWM Compliance: AWM 2464
  • CEC / C(UL) Compliance: CMG
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.442 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP.
