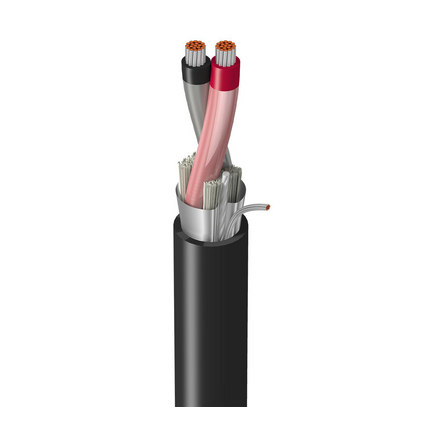

Belden 9342 01010000 High Perform Instr, 1 Pr #16 Str TC, PVC-NYL Ins E2, OS, Blk PVC Jkt, 600V TC - illustration only; refer to description for cable color and put-up

Belden 9342 01010000 High Perform Instr, 1 Pr #16 Str TC, PVC-NYL Ins E2, OS, Blk PVC Jkt, 600V TC - Black

$63,651.99
SKU:
9342 01010000
Shipping:
Calculated at Checkout
Color:
Black
Manufacturer Status:
Active
Product Family:
9342
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 9342 01010000 High Perform Instr, 1 Pr #16 Str TC, PVC-NYL Ins E2, OS, Blk PVC Jkt, 600V TC

High Performance Instrumentation, 1 Pair 16AWG (19x29) Tinned Copper, PVC-NYL Insulation E2 Color Code, Overall Beldfoil® Shield, Black PVC Outer Jacket, 600V TC

Ordering Details

  • Manufacturer Part Number: 9342 01010000
  • Color: Black
  • UPC/EAN: 612825232063

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: Industrial Control, Raceways Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, ...),low voltage digital control (24v, …), encoders, control circuits, distributed control system (DCS),programmable logic controller (PLC), Solenoids, Valves, Actuators, Positioners

Construction Details

  • Element: Pair(s); No. of Elements: 1; Size: 16 AWG; Stranding: 19x29; Material: TC - Tinned Copper
  • Element: Pair(s); Material: PVC/Nylon - Polyvinyl Chloride + Nylon; Nom. Thickness: 0.022 in (0.56 mm); Nom. Insulation Diameter: 0.101 in (2.57 mm); Color Code: ICEA Chart E2
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 16 AWG (19x29) TC
  • Separator: Cotton Serve; Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.047 in (1.2 mm); Nom. Diameter: 0.294 in (7.47 mm); Ripcord: Yes
  • Overall Cable Diameter (Nominal): 0.294 in (7.47 mm)

Electrical Characteristics

  • Element: Pair(s); Nom. Conductor DCR: 4.45 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 50 pF/ft (160 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 87 pF/ft (290 pF/m); Nom. Inductance: 0.2 µH/ft (0.66 µH/m); Max. Current: 6.2 Amps per conductor at 25°C
  • Nom Outer Shield DCR: 4.18 Ohm/1000ft (13.7 Ohm/km)
  • UL Voltage Rating: 600 V (TC), 150 V (NPLF)

Mechanical Characteristics

  • UL Temperature: 90°C Dry, 90°C Wet; Operating: -30°C to +90°C Dry, 75°C wet
  • Stationary Min.: 2.9 in (74 mm); Installation Min.: 2.9 in (74 mm)
  • Max. Pull Tension: 40 lbs (18 kg)
  • Bulk Cable Weight: 52 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Burial
  • Flammability / Reaction to Fire: UL 1685 UL Loading, IEEE 1202, FT4
  • NEC / UL Compliance: Article 336, Article 760, NPLF, TC
  • European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.590 Revision Date: 04-10-2026
  • Footnote: C - CRATE REEL PUT-UP.
