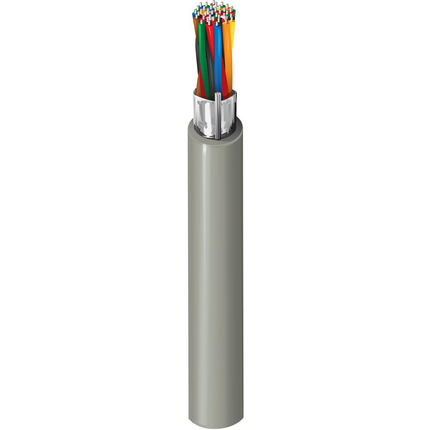

Belden 9315 060500 Audio, Control & Instrument, #22-15pr, PVC, O/A Foil, PVC Jkt, CMG - Chrome, 500 ft Reel

$6,308.99
SKU:
9315 060500
Shipping:
Calculated at Checkout
Color:
Chrome
Length:
500 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
9315
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 9315 060500 Audio, Control & Instrument, #22-15pr, PVC, O/A Foil, PVC Jkt, CMG

Audio, Control & Instrument Cable, 22 AWG solid tinned copper conductors, PVC insulation, twisted pairs, overall Beldfoil® shield (100% coverage), 22 AWG stranded tinned copper drain wire, PVC jacket.

Ordering Details

  • Manufacturer Part Number: 9315 060500
  • Color: Chrome
  • Length: 500 ft
  • Put-Up: Reel
  • UPC/EAN: 612825228196
  • Manufacturer Footnote: C

Supplied as one 500 ft Reel.

Product Overview

  • Suitable Applications: low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring

Construction Details

  • Size: 22; Stranding: Solid; Material: TC - Tinned Copper
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.013 in (0.33 mm); Color Code: Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown, Black & Orange, Red & White, Red & Green, Red & Blue, Red & Yellow, Red & Brown, Red & Orange, Green & White, Green & Blue
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.037 in (0.94 mm); Nom. Diameter: 0.449 in

Electrical Characteristics

  • Nom. Conductor DCR: 16.5 Ohm/1000ft (54.1 Ohm/km); Nom. Capacitance Cond-to-Cond: 35 pF/ft (110 pF/m); Nom. Capacitance Cond-to-Shield: 50 pF/ft (160 pF/m); Nom. Inductance: 0.2 µH/ft (0.66 µH/m); Max. Current: 1.4 Amps per Conductor at 25ºC
  • Nom Outer Shield DCR: 14 Ohm/1000ft (46 Ohm/km)
  • UL Voltage Rating: 300 V RMS

Mechanical Characteristics

  • UL Temperature: 80°C (UL AWM Style 2464); Operating: -20°C To +80°C
  • Max. Pull Tension: 242 lbs (110 kg)
  • Bulk Cable Weight: 124 lbs/1000ft (185 kg/km)

Standards and Compliance

  • Flammability / Reaction to Fire: UL1685 FT4 Loading, IEC 60332-1-2
  • CPR Compliance: CPR Euroclass: Eca
  • NEC / UL Compliance: CMG
  • AWM Compliance: AWM 2464 (300 V 80°C)
  • CEC / C(UL) Compliance: CMG
  • European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.338 Revision Date: 10-30-2026
  • Footnote: C - CRATE REEL PUT-UP.

Resources

Belden 9315 Product Information
