Description
Belden 9314 0605000 High Perform Instr, 1 Pr #14 Str TC, PVC Ins E2, OS, PVC Jkt, PLTC
High Performance Instrumentation, 1 Pair 14AWG (42x30) Tinned Copper, PVC Insulation E2 Color Code, Overall Beldfoil® Shield, PVC Outer Jacket, PLTC
Ordering Details
- Manufacturer Part Number: 9314 0605000
- Color: Chrome
- Length: 5,000 ft
- Put-Up: Reel
- UPC/EAN: 612825228134
- Manufacturer Footnote: C Z
Supplied as one 5,000 ft Reel.

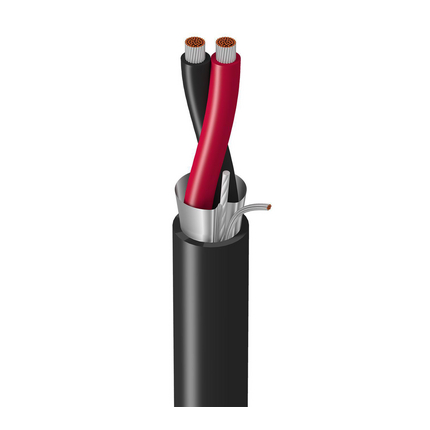

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Instrumentation, Sensors, Valves, Positioners, 4-20mA, 0-10V
Construction Details
- Element: Pair(s); No. of Elements: 1; Size: 14 AWG; Stranding: 42x30; Material: TC - Tinned Copper
- Element: Pair(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.022 in (0.56 mm); Nom. Insulation Diameter: 0.119 in (3.02 mm); Color Code: ICEA Chart E2
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 16 AWG (19x29) TC
- Separator: Cotton Serve; Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.042 in (1.1 mm); Nom. Diameter: 0.325 in (8.26 mm); Ripcord: Yes
- Overall Cable Diameter (Nominal): 0.325 in (8.26 mm)
Electrical Characteristics
- Element: Pair(s); Nom. Conductor DCR: 2.8 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 27 pF/ft (89 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 54 pF/ft (180 pF/m); Nom. Inductance: 0.18 µH/ft (0.59 µH/m); Max. Current: 8 Amps per conductor at 25°C
- Nom Outer Shield DCR: 4.18 Ohm/1000ft (13.7 Ohm/km)
- UL Voltage Rating: 300 V (PLTC)
Mechanical Characteristics
- UL Temperature: 105°C; Operating: -30°C to +105°C
- Temperature Table Notes: AWM 80°C
- Stationary Min.: 3.3 in (84 mm); Installation Min.: 3.3 in (84 mm)
- Max. Pull Tension: 147 lbs (66.7 kg)
- Bulk Cable Weight: 63 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance
- Flammability / Reaction to Fire: UL 1685 UL Loading, T-29-520, IEEE 1202, FT4
- NEC / UL Compliance: Article 725, Article 727, CL3R, ITC, PLTC
- AWM Compliance: AWM 2464
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.615 Revision Date: 04-10-2026
- Footnote: C - CRATE REEL PUT-UP., Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.
