Description

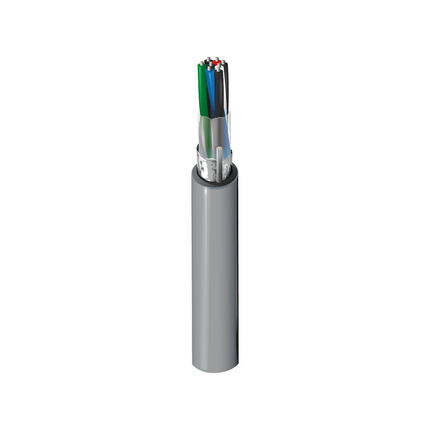

Belden 9305 0605000 Audio, Control & Instrument, #22-4pr, PVC, O/A Foil, PVC Jkt, CMG
Audio, Control & Instrument Cable, 22 AWG solid tinned copper conductors, PVC insulation, 4 twisted pairs, overall Beldfoil® shield (100% coverage), 22 AWG stranded tinned copper drain wire, PVC jacket.
Ordering Details
- Manufacturer Part Number: 9305 0605000
- Color: Chrome
- Length: 5,000 ft
- Put-Up: Reel
- UPC/EAN: 612825227427
- Manufacturer Footnote: C
Supplied as one 5,000 ft Reel.
Product Overview
- Suitable Applications: low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring
Construction Details
- Element: Pair(s); No. of Elements: 4; Size: 22; Stranding: Solid; Material: TC - Tinned Copper
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.011 in (0.28 mm); Nom. Insulation Diameter: 0.051 in (1.3 mm); Color Code: Black & Red, Black & White, Black & Green, Black & Blue
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 22 AWG (7x30) TC
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.032 in (0.81 mm); Nom. Diameter: 0.265 in (6.73 mm)
Electrical Characteristics
- Nom. Conductor DCR: 20.6 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 35 pF/ft (110 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 50 pF/ft (160 pF/m); Nom. Inductance: 0.2 µH/ft (0.66 µH/m); Max. Current: 2.03 Amps per Conductor at 25ºC
- Nom Outer Shield DCR: 10.39 Ohm/1000ft (34.09 Ohm/km)
- UL Voltage Rating: 300 V
Mechanical Characteristics
- UL Temperature: 80°C; Operating: -20°C To +80°C
- Stationary Min.: 2.65 in (67.3 mm); Installation Min.: 2.65 in (67.3 mm)
- Max. Pull Tension: 62.4 lbs (28.3 kg)
- Bulk Cable Weight: 41 lbs/1000ft
Standards and Compliance
- Flammability / Reaction to Fire: UL1685 FT4 Loading, FT4, IEC 60332-1-2
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: Article 800, CMG
- AWM Compliance: AWM 2464
- CEC / C(UL) Compliance: CMG
- European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.439 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
