Description
Belden 9273 010500 Mil-Spec Coax, 50 Ohm, RG-223, 19 AWG Solid SC, Double 95% SC Braid, PVC Jkt, CMX, Commercial Non-QPL
Mil-Spec Coax, 50 Ohm, RG-223, 19 AWG Solid Silvered Copper Conductor, PE Insulation, Double 95% Silvered Copper Braid Shield, PVC Jacket (Non-Contaminating), CMX, Commercial, non-QPL
Ordering Details
- Manufacturer Part Number: 9273 010500
- Color: Black
- Length: 500 ft
- Put-Up: Reel
- UPC/EAN: 612825226277
Supplied as one 500 ft Reel.

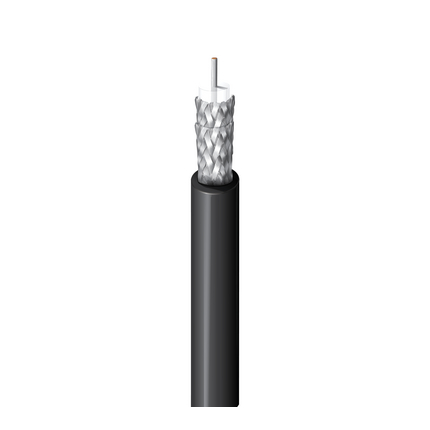

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: High frequency microwave and satellite, Point-to-point and point-to-multipoint wireless antenna communication
Construction Details
- RG Type: 223
- Size: 19 AWG; Stranding: Solid; Nom. Diameter: 0.034 in; Material: SC - Silvered Copper
- Material: PE - Polyethylene; Nom. Insulation Diameter: 0.117 in (2.97 mm); Color Code: White
- Layer: 1; Outer Shield Type: Braid; Material: Silvered Copper (SC); Coverage: 95%
- Layer: 2; Outer Shield Type: Braid; Material: Silvered Copper (SC); Coverage: 95%
- Material: PVC - Polyvinyl Chloride (Non-Contaminating); Nom. Diameter: 0.212 in (5.38 mm)
- Overall Cable Diameter (Nominal): 0.212 in (5.38 mm)
Electrical Characteristics
- Frequency: 1 MHz; Nom. Attenuation: 0.4 dB/100ft
- Frequency: 10 MHz; Nom. Attenuation: 1.2 dB/100ft
- Frequency: 50 MHz; Nom. Attenuation: 2.8 dB/100ft
- Frequency: 100 MHz; Nom. Attenuation: 4.1 dB/100ft
- Frequency: 200 MHz; Nom. Attenuation: 6.0 dB/100ft
- Frequency: 400 MHz; Nom. Attenuation: 8.8 dB/100ft
- Frequency: 700 MHz; Nom. Attenuation: 12 dB/100ft
- Frequency: 900 MHz; Nom. Attenuation: 13.8 dB/100ft
- Frequency: 1000 MHz; Nom. Attenuation: 14.5 dB/100ft
- Frequency: 50 MHz; Max. Power Rating: 350 W
- Frequency: 400 MHz; Max. Power Rating: 86 W
- Frequency: 1,000 MHz; Max. Power Rating: 50 W
- Nom. Conductor DCR: 8.8 Ohm/1000ft; Nom. Outer Shield DCR: 2.5 Ohm/1000ft (8.2 Ohm/km); Nom. Capacitance Cond-to-Shield: 30.8 pF/ft (101 pF/m); Nom. Characteristic Impedance: 50 Ohm; Nom. Velocity of Prop.: 66%
- UL Voltage Rating: 30 V RMS (UL AWM Style 1354) (UL AWM 1354); Voltage Rating: 1400 V (Mil-Spec)
Mechanical Characteristics
- UL Temperature: 60°C (UL AWM 1354); Operating: -40°C to +60°C
- Installation Min.: 2.1 in (53 mm)
- Max. Pull Tension: 87 lbs (39 kg)
- Bulk Cable Weight: 37 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor (Not Riser or Plenum), Indoor, Aerial - Black only, When supported by messenger wire
- Sustainability: CA Prop 65
- Flammability / Reaction to Fire: VW-1
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: CMX
- AWM Compliance: AWM 1354
- CEC / C(UL) Compliance: CMX
- Military Compliance: Commercial, non-QPL product (M17/167-00001)
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.522 Revision Date: 02-20-2026
- Footnote: C - CRATE REEL PUT-UP.
