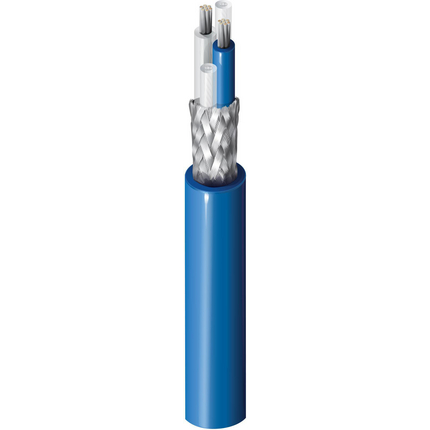

Belden 9272 006U500 78Ω Twinax, #20 TC, PO, TC Braid, PVC Jkt, CM - Blue, 500 ft UnReel

$1,831.99
SKU:
9272 006U500
Shipping:
Calculated at Checkout
Color:
Blue
Length:
500 ft
Put-Up:
UnReel
Manufacturer Status:
Active
Product Family:
9272
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 9272 006U500 78Ω Twinax, #20 TC, PO, TC Braid, PVC Jkt, CM

78 Ohm Twinax, 20 AWG stranded (7x28) .038" tinned copper conductors, polyethylene insulation, tinned copper braid shield (93% Coverage), PVC jacket.

Ordering Details

  • Manufacturer Part Number: 9272 006U500
  • Color: Blue
  • Length: 500 ft
  • Put-Up: UnReel
  • UPC/EAN: 612825226239

Supplied as one 500 ft UnReel.

Product Overview

  • Suitable Applications: RF

Construction Details

  • Size: 20; Stranding: 7x28; Nom. Diameter: 0.038 in; Material: TC - Tinned Copper
  • Size: 20; Stranding: 7x28; Nom. Diameter: 0.038 in; Material: TC - Tinned Copper
  • Material: PE - Polyethylene; Nom. Insulation Diameter: 0.0755 in (1.92 mm); Color Code: Blue, Natural
  • Material: PE - Polyethylene; Nom. Insulation Diameter: 0.0755 in (1.92 mm)
  • Layer: 1; Outer Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 93%
  • Material: PVC - Polyvinyl Chloride; Nom. Diameter: 0.244 in

Electrical Characteristics

  • Frequency: 1 MHz; Nom. Attenuation: 0.6 dB/100ft
  • Frequency: 10 MHz; Nom. Attenuation: 2.1 dB/100ft
  • Frequency: 50 MHz; Nom. Attenuation: 5.0 dB/100ft
  • Frequency: 100 MHz; Nom. Attenuation: 7.5 dB/100ft
  • Frequency: 200 MHz; Nom. Attenuation: 11 dB/100ft
  • Frequency: 400 MHz; Nom. Attenuation: 16 dB/100ft
  • Nom. Conductor DCR: 9.5 Ohm/1000ft (31 Ohm/km); Nom. Outer Shield DCR: 3.4 Ohm/1000ft (11 Ohm/km); Nom. Capacitance Cond-to-Shield: 19.7 pF/ft (64.6 pF/m); Nom. Characteristic Impedance: 78 Ohm; Nom. Velocity of Prop.: 66%
  • UL Voltage Rating: 300 V RMS

Mechanical Characteristics

  • UL Temperature: 60°C (UL AWM Style 2092); Operating: -30°C To +75°C
  • Max. Pull Tension: 55 lbs (25 kg)
  • Bulk Cable Weight: 38 lbs/1000ft (57 kg/km)

Standards and Compliance

  • Environmental Suitability: Indoor, Aerial - Black only, When supported by messenger wire
  • Flammability / Reaction to Fire: UL 1685 UL Loading, IEC 60332-1-2
  • CPR Compliance: CPR Euroclass: Eca; CPR UKCA Class: Eca
  • NEC / UL Compliance: CM
  • AWM Compliance: AWM 2092 (300 V 60°C)
  • CEC / C(UL) Compliance: CM
  • European Directive Compliance: EU CE Mark, EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)
  • Plenum Number: 89272

History

  • Update and Revision: Revision Number: 0.422 Revision Date: 11-06-2026
  • Footnote: C - CRATE REEL PUT-UP.

Resources

Belden 9272 Product Information
