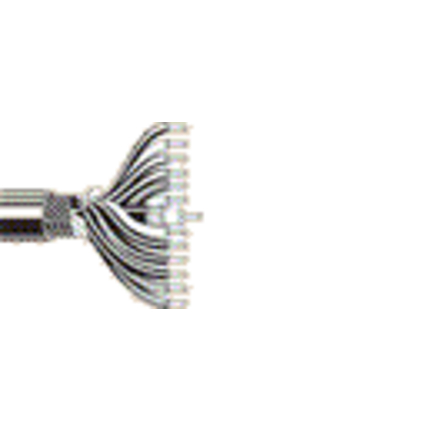

Belden 9262 0081000 Composite Audio, Video, Security and Control - Gray, 1,000 ft Reel

$20,367.99
SKU:
9262 0081000
Shipping:
Calculated at Checkout
Color:
Gray
Length:
1,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
9262
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 9262 0081000 Composite Audio, Video, Security and Control

Composite, 22 AWG Coax TC, stranded (7x30), BC braid shield 95% coverage, 12 Cond. 20 AWG TC, stranded (7x28), overall TC braid shield 80% coverage, PVC outer jacket.

Ordering Details

  • Manufacturer Part Number: 9262 0081000
  • Color: Gray
  • Length: 1,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825225980
  • Manufacturer Footnote: C

Supplied as one 1,000 ft Reel.

Construction Details

  • Size: 22; Stranding: Stranded; Nom. Diameter: 0.031 in; Material: TC - Tinned Copper
  • Size: 20; Stranding: 7x28; Nom. Diameter: 0.038 in; Material: TC - Tinned Copper
  • Material: PE - Polyethylene (Foam); Nom. Insulation Diameter: 0.146 in (3.71 mm)
  • Material: PVC - Polyvinyl Chloride; Nom. Insulation Diameter: 0.07 in (1.8 mm)
  • Shield Type: Braid; Material: Bare Copper (BC); Coverage: 95%
  • Material: PVC - Polyvinyl Chloride; Nom. Diameter: 0.208 in (5.28 mm)
  • Outer Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 80%
  • Material: PVC - Polyvinyl Chloride; Nom. Diameter: 0.46 in

Electrical Characteristics

  • Frequency: 0.5 MHz; Nom. Attenuation: 0.2 dB/100ft
  • Frequency: 1 MHz; Nom. Attenuation: 0.29 dB/100ft
  • Frequency: 5 MHz; Nom. Attenuation: 0.67 dB/100ft
  • Frequency: 10 MHz; Nom. Attenuation: 0.95 dB/100ft
  • Frequency: 100 MHz; Nom. Attenuation: 3.1 dB/100ft
  • Frequency: 200 MHz; Nom. Attenuation: 4.4 dB/100ft
  • Frequency: 400 MHz; Nom. Attenuation: 6.3 dB/100ft
  • Nom. Conductor DCR: 14.4 Ohm/1000ft (47.2 Ohm/km); Nom. Inner Shield DCR: 2.55 Ohm/1000ft (8.37 Ohm/km); Nom. Capacitance Cond-to-Shield: 17.3 pF/ft (56.8 pF/m); Nom. Characteristic Impedance: 75 Ohm; Nom. Velocity of Prop.: 78%
  • UL Voltage Rating: 300 V RMS, 300 V RMS

Mechanical Characteristics

  • UL Temperature: 75°C; Operating: -30°C To +75°C
  • Max. Pull Tension: 305 lbs (138 kg)
  • Bulk Cable Weight: 150 lbs/1000ft (220 kg/km)

Standards and Compliance

  • Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
  • Flammability / Reaction to Fire: IEC 60332-1-2
  • CPR Compliance: CPR Euroclass: Eca; CPR UKCA Class: Eca
  • NEC / UL Compliance: CL2X
  • AWM Compliance: AWM 1007 (singles), AWM 1354 (coax), AWM 2594 (overall)
  • European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.355 Revision Date: 11-06-2026
  • Footnote: C - CRATE REEL PUT-UP.
