Description
Belden 9252 0101000 50 Ohm, 22 AWG Stranded TC, TC Braid, Non-contaminating PVC Jacket, Commercial Non-QPL Product.
RG-122/U, 22 AWG stranded (27x36) .030" tinned copper conductor, polyethylene insulation, tinned copper braid shield (95% coverage), non-contaminating PVC jacket, commercial non-QPL product.
Ordering Details
- Manufacturer Part Number: 9252 0101000
- Color: Black
- Length: 1,000 ft
- Put-Up: Reel
- UPC/EAN: 612825225799
Supplied as one 1,000 ft Reel.

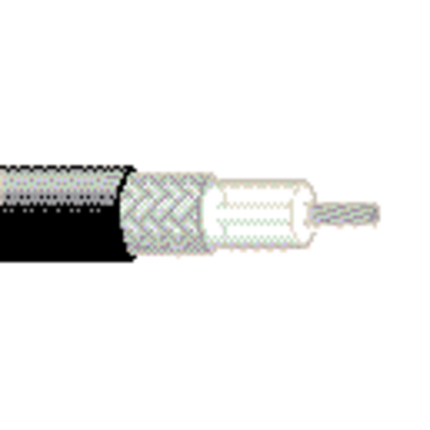

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Construction Details
- RG Type: 122
- Size: 22; Stranding: Stranded; Nom. Diameter: 0.03 in; Material: TC - Tinned Copper
- Material: PE - Polyethylene; Nom. Insulation Diameter: 0.096 in (2.4 mm)
- Layer: 1; Outer Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 95%
- Material: PVC - Polyvinyl Chloride (Non-Contaminating); Nom. Diameter: 0.16 in
Electrical Characteristics
- Frequency: 1 MHz; Nom. Attenuation: 0.4 dB/100ft
- Frequency: 10 MHz; Nom. Attenuation: 1.7 dB/100ft
- Frequency: 50 MHz; Nom. Attenuation: 4.5 dB/100ft
- Frequency: 100 MHz; Nom. Attenuation: 7 dB/100ft
- Frequency: 200 MHz; Nom. Attenuation: 11 dB/100ft
- Frequency: 400 MHz; Nom. Attenuation: 16.5 dB/100ft
- Frequency: 700 MHz; Nom. Attenuation: 23.5 dB/100ft
- Frequency: 900 MHz; Nom. Attenuation: 27.3 dB/100ft
- Frequency: 1000 MHz; Nom. Attenuation: 29 dB/100ft
- Nom. Conductor DCR: 17.1 Ohm/1000ft (56.1 Ohm/km); Nom. Outer Shield DCR: 5.2 Ohm/1000ft (17 Ohm/km); Nom. Capacitance Cond-to-Shield: 30.8 pF/ft (101 pF/m); Nom. Characteristic Impedance: 50 Ohm; Nom. Velocity of Prop.: 66%
- UL Voltage Rating: 300 V RMS (CMX), 30 V RMS (UL AWM Style 1354); Voltage Rating: 1400 V RMS (Mil-Spec)
Mechanical Characteristics
- UL Temperature: 60°C; Operating: -40°C To +60°C
- Max. Pull Tension: 38 lbs (17 kg)
- Bulk Cable Weight: 18 lbs/1000ft (27 kg/km)
Standards and Compliance
- Environmental Suitability: Indoor (Not Riser or Plenum), Indoor, Aerial - Black only, When supported by messenger wire
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: CMX
- AWM Compliance: AWM 1354 (30 V 60°C)
- CEC / C(UL) Compliance: CMX
- Military Compliance: Commercial, non-QPL product (M17/157-00001)
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.441 Revision Date: 11-06-2026
