Belden 9223 0101000 Audio Coax, Low Noise, 22 AWG Str TC, Foil + 95% TC Brd, PVC Jkt
Audio Coax, Low Noise, 22 AWG (7x30) Tinned Copper Conductor, Inner PE Conductive Layer, PE Insulation, Duobond® II + 95% Tinned Copper Braid Shield, PVC Jacket
Ordering Details
- Manufacturer Part Number: 9223 0101000
- Color: Black
- Length: 1,000 ft
- Put-Up: Reel
- UPC/EAN: 612825357759
- Manufacturer Footnote: C
Supplied as one 1,000 ft Reel.

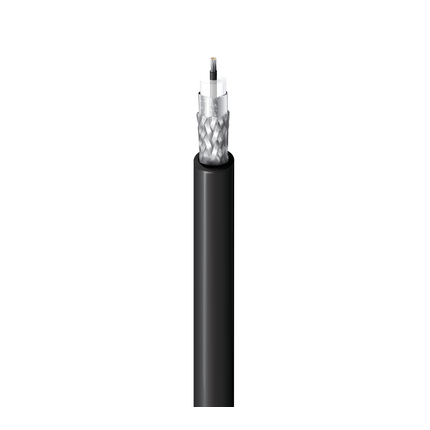

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Low noise microphone, Analog audio, Instrumentation
Construction Details
- RG Type: 58
- Size: 22 AWG; Stranding: 7x30; Nom. Diameter: 0.029 in; Material: TC - Tinned Copper
- Material: PE - Polyethylene (Conductive); Nom. Insulation Diameter: 0.112 in (2.84 mm); Color Code: Black
- Material: PE - Polyethylene; Nom. Insulation Diameter: 0.112 in (2.84 mm); Color Code: White
- Layer: 1; Outer Shield Type: Tape; Material: Tri-Laminate (Alum+Poly+Alum); Material Trade Name: Duobond® II; Coverage: 100%
- Layer: 2; Outer Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 95%
- Material: PVC - Polyvinyl Chloride; Nom. Diameter: 0.195 in (4.95 mm)
- Overall Cable Diameter (Nominal): 0.195 in (4.95 mm)
Electrical Characteristics
- Nom. Conductor DCR: 15.1 Ohm/1000ft (49.5 Ohm/km); Nom. Outer Shield DCR: 3.8 Ohm/1000ft (12 Ohm/km); Nom. Capacitance Cond-to-Shield: 37 pF/ft (120 pF/m); Nom. Velocity of Prop.: 56%
- Voltage Rating: 1900 V RMS
- Electrical Characteristics Notes: NBS Low Noise Test (Modified), MIL-C-17 Paragraph 4.8.14, 8 mV Peak to Peak Max
Mechanical Characteristics
- Operating: -40°C to +80°C
- Installation Min.: 2 in (51 mm)
- Max. Pull Tension: 8.85 lbs (4.01 kg)
- Bulk Cable Weight: 24 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
- Sustainability: CA Prop 65
- CPR Compliance: CPR Euroclass: Eca; CPR UKCA Class: Eca
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
Product Notes
- Notes: Not recommended for RF use
History
- Update and Revision: Revision Number: 0.446 Revision Date: 02-20-2026
- Footnote: C - CRATE REEL PUT-UP.
