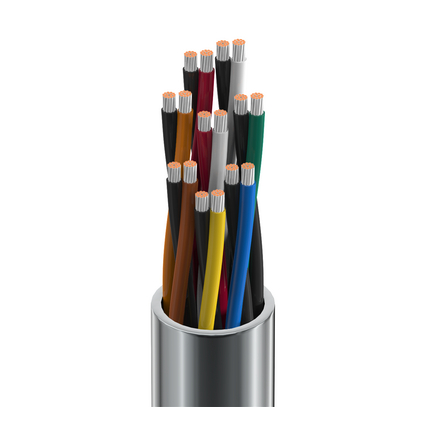

Belden 9161 060100 Electronic, 8 Pr #18 Str TC, PVC Ins, PVC Jkt, CMG - Chrome, 100 ft Reel

$1,919.99
SKU:
9161 060100
Shipping:
Calculated at Checkout
Color:
Chrome
Length:
100 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
9161
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 9161 060100 Electronic, 8 Pr #18 Str TC, PVC Ins, PVC Jkt, CMG

Electronic, 8 Pair 18AWG (16x30) Tinned Copper, PVC Insulation, PVC Outer Jacket, CMG

Ordering Details

  • Manufacturer Part Number: 9161 060100
  • Color: Chrome
  • Length: 100 ft
  • Put-Up: Reel
  • UPC/EAN: 612825224990
  • Manufacturer Footnote: C

Supplied as one 100 ft Reel.

Product Overview

  • Suitable Applications: low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring

Construction Details

  • Element: Pair(s); No. of Elements: 8; Size: 18 AWG; Stranding: 16x30; Material: TC - Tinned Copper
  • Element: Pair(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.013 in (0.33 mm); Nom. Insulation Diameter: 0.073 in (1.9 mm); Color Code: Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown, Black & Orange, Red & White
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.037 in (0.94 mm); Nom. Diameter: 0.485 in (12.3 mm)
  • Overall Cable Diameter (Nominal): 0.485 in (12.3 mm)

Electrical Characteristics

  • Element: Pair(s); Nom. Conductor DCR: 7.2 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 25.5 pF/ft (83.7 pF/m); Max. Current: 3.5 Amps per Conductor at 20ºC
  • UL Voltage Rating: 300 V (CMG), 300 V (UL AWM 2464)

Mechanical Characteristics

  • UL Temperature: 80°C; Operating: -20°C to +80°C
  • Stationary Min.: 4.9 in (120 mm); Installation Min.: 4.9 in (120 mm)
  • Max. Pull Tension: 332.8 lbs (151.0 kg)
  • Bulk Cable Weight: 142 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor
  • Sustainability: CA Prop 65
  • Flammability / Reaction to Fire: UL 1685 FT4 Loading, FT4
  • CPR Compliance: CPR Euroclass: Eca
  • NEC / UL Compliance: Article 800, CMG
  • AWM Compliance: AWM 2464
  • CEC / C(UL) Compliance: CMG
  • European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.539 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP.
