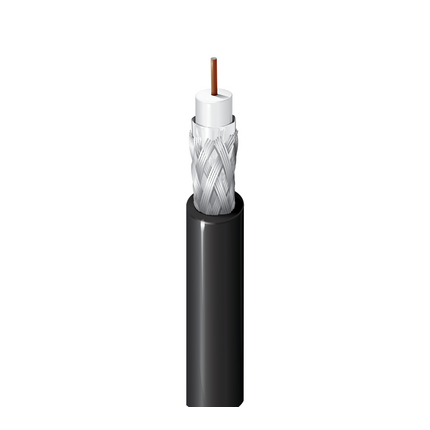

Belden 9116 0101000 Broadband Coax, Series 6, 18 AWG Solid BCCS, Foil + 60% AL Braid, PVC Jkt, CM
Broadband Coax, Series 6, 18 AWG Solid Bare Copper Covered Steel Conductor, PE Insulation, Foil + 60% Aluminum Braid Shield, PVC Jacket, CM
Ordering Details
- Manufacturer Part Number: 9116 0101000
- Color: Black
- Length: 1,000 ft
- Put-Up: Reel
- UPC/EAN: 612825224440
- Manufacturer Footnote: C
Supplied as one 1,000 ft Reel.
Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Broadband, Cable Television (CATV), RF drop cable, Over-The-Air (OTA) antennas
Construction Details
- Series Type: 6
- Size: 18 AWG; Stranding: Solid; Nom. Diameter: 0.040 in; Material: BCCS - Bare Copper Covered Steel
- Material: PE - Polyethylene (Foam); Nom. Insulation Diameter: 0.180 in (4.57 mm); Color Code: White
- Layer: 1; Outer Shield Type: Tape; Material: Tri-Laminate (Alum+Poly+Alum); Material Trade Name: Duobond® II; Coverage: 100%
- Layer: 2; Outer Shield Type: Braid; Material: Aluminum; Coverage: 60%
- Material: PVC - Polyvinyl Chloride; Nom. Diameter: 0.270 in (6.86 mm)
- Overall Cable Diameter (Nominal): 0.270 in (6.86 mm)
Electrical Characteristics
- Frequency: 5 - 1000 MHz; Min. Structural Return Loss: 20 dB
- Frequency: 5 MHz; Max. Attenuation: 0.58 dB/100ft
- Frequency: 55 MHz; Max. Attenuation: 1.60 dB/100ft
- Frequency: 211 MHz; Max. Attenuation: 3.05 dB/100ft
- Frequency: 250 MHz; Max. Attenuation: 3.30 dB/100ft
- Frequency: 270 MHz; Max. Attenuation: 3.37 dB/100ft
- Frequency: 300 MHz; Max. Attenuation: 3.55 dB/100ft
- Frequency: 330 MHz; Max. Attenuation: 3.74 dB/100ft
- Frequency: 350 MHz; Max. Attenuation: 3.85 dB/100ft
- Frequency: 400 MHz; Max. Attenuation: 4.15 dB/100ft
- Frequency: 450 MHz; Max. Attenuation: 4.40 dB/100ft
- Frequency: 500 MHz; Max. Attenuation: 4.66 dB/100ft
- Frequency: 550 MHz; Max. Attenuation: 4.90 dB/100ft
- Frequency: 600 MHz; Max. Attenuation: 5.10 dB/100ft
- Frequency: 750 MHz; Max. Attenuation: 5.65 dB/100ft
- Frequency: 870 MHz; Max. Attenuation: 6.11 dB/100ft
- Frequency: 1000 MHz; Max. Attenuation: 6.55 dB/100ft
- Nom. Conductor DCR: 28 Ohm/1000ft; Nom. Outer Shield DCR: 9 Ohm/1000ft (30 Ohm/km); Nom. Capacitance Cond-to-Shield: 16.2 pF/ft (53.1 pF/m); Nom. Characteristic Impedance: 75 Ohm; Nom. Velocity of Prop.: 83%
- UL Voltage Rating: 300 V (CM)
Mechanical Characteristics
- Operating: -40°C to +80°C
- Installation Min.: 3 in (76 mm)
- Max. Pull Tension: 150 lbs (68 kg)
- Bulk Cable Weight: 30 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor (Not Riser or Plenum), Indoor, Aerial - Black only, When supported by messenger wire
- Sustainability: CA Prop 65
- Flammability / Reaction to Fire: UL1685 UL Loading
- CPR Compliance: CPR Euroclass: Eca; CPR UKCA Class: Eca
- NEC / UL Compliance: CM, CATV
- CEC / C(UL) Compliance: CM
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
- Other Standard Compliance(s): ANSI/SCTE 74
- Plenum Number: 9116P
History
- Update and Revision: Revision Number: 0.524 Revision Date: 02-20-2026
- Footnote: C - CRATE REEL PUT-UP.
