Belden 89907 E4X1000 Thinnet 10BASE2, RG-58A/U Type, #20 Str, FFEP, Duobond II+TC Braid, PVDF Jkt, CMP
IEEE 802.3 Ethernet Thinnet 10BASE2, 20 AWG (19x32) tinned copper conductor, foam FEP insulation, Duobond® II (100% coverage) + tinned copper braid shield (95% coverage), fluorocopolymer jacket, CMP
Ordering Details
- Manufacturer Part Number: 89907 E4X1000
- Color: Gray, Light Dec
- Length: 1,000 ft
- Put-Up: Reel
- UPC/EAN: 612825221425
- Manufacturer Footnote: C
Supplied as one 1,000 ft Reel.

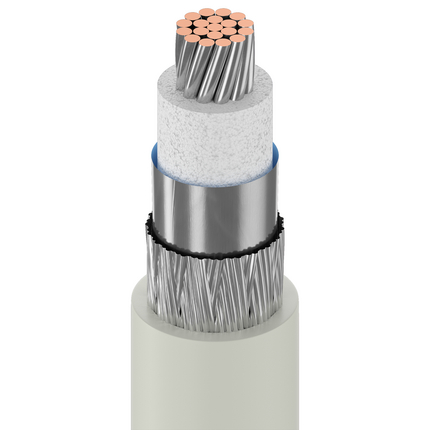

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Thin Ethernet (IEEE 802.3 10BASE2)
Construction Details
- RG Type: 58
- Size: 20 AWG; Stranding: 19x32; Nom. Diameter: 0.037 in; Material: TC - Tinned Copper
- Material: PFA - Perfluoroalkoxy (Foam); Nom. Insulation Diameter: 0.100 in (2.54 mm); Color Code: White
- Layer: 1; Outer Shield Type: Tape; Material: Tri-Laminate (Alum+Poly+Alum); Material Trade Name: Duobond® II; Coverage: 100%
- Layer: 2; Outer Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 93%
- Material: PVDF - Polyvinylidene Fluoride; Nom. Diameter: 0.165 in (4.19 mm)
- Overall Cable Diameter (Nominal): 0.165 in (4.19 mm)
Electrical Characteristics
- Frequency: 1 MHz; Nom. Attenuation: 0.43 dB/100ft
- Frequency: 10 MHz; Nom. Attenuation: 1.3 dB/100ft
- Frequency: 50 MHz; Nom. Attenuation: 2.91 dB/100ft
- Frequency: 100 MHz; Nom. Attenuation: 4.18 dB/100ft
- Frequency: 200 MHz; Nom. Attenuation: 6.1 dB/100ft
- Frequency: 400 MHz; Nom. Attenuation: 9.2 dB/100ft
- Frequency: 700 MHz; Nom. Attenuation: 12.9 dB/100ft
- Frequency: 900 MHz; Nom. Attenuation: 15.0 dB/100ft
- Frequency: 1000 MHz; Nom. Attenuation: 16.0 dB/100ft
- Frequency: 1 MHz; Max. Power Rating: 6,450 W
- Frequency: 10 MHz; Max. Power Rating: 1,850 W
- Frequency: 50 MHz; Max. Power Rating: 890 W
- Frequency: 100 MHz; Max. Power Rating: 640 W
- Frequency: 200 MHz; Max. Power Rating: 470 W
- Frequency: 400 MHz; Max. Power Rating: 360 W
- Frequency: 700 MHz; Max. Power Rating: 290 W
- Frequency: 900 MHz; Max. Power Rating: 270 W
- Frequency: 1,000 MHz; Max. Power Rating: 260 W
- Nom. Conductor DCR: 8.5 Ohm/1000ft (28 Ohm/km); Nom. Outer Shield DCR: 5.8 Ohm/1000ft (19 Ohm/km); Nom. Capacitance Cond-to-Shield: 26.0 pF/ft (85.3 pF/m); Nom. Characteristic Impedance: 50 Ohm; Nom. Velocity of Prop.: 80%
- UL Voltage Rating: 300 V (CMP)
Mechanical Characteristics
- UL Temperature: 150°C; Operating: -15°C to +150°C
- Installation Min.: 1.6 in (41 mm)
- Max. Pull Tension: 45 lbs (20 kg)
- Bulk Cable Weight: 26 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor - Plenum, Aerial - When supported by messenger wire
- Sustainability: CA Prop 65
- Flammability / Reaction to Fire: NFPA 262
- CPR Compliance: CPR Euroclass: Eca
- CEC / C(UL) Compliance: CMP
- IEEE Compliance: 802.3 10Base2
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
- Non-Plenum Number: 9907
History
- Update and Revision: Revision Number: 0.525 Revision Date: 02-20-2026
- Footnote: C - CRATE REEL PUT-UP., Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.
